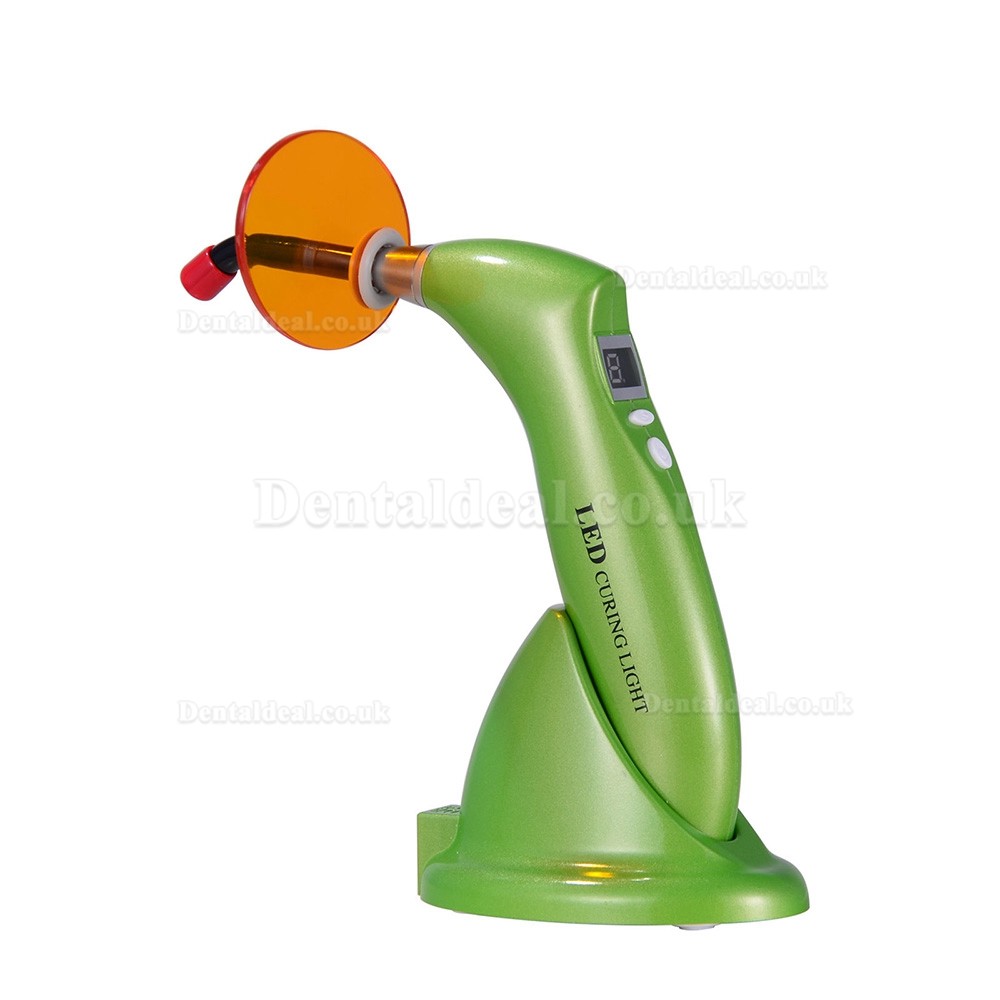

Dental Wireless LED Curing Cure Lamp light Cordless 1500mw 5 Color

5 Color Dental LED Curing Cure Lamp light Wireless Cordless 1500mw for Dentist

Description:

1. Description

LED Curing Light is composed mainly of high power LED, micro-control electric circuit, Li-on battery, charging base, light guide, Circular eye-protector and power adapter.

Adjustable curing time and three curing modes are available.

2. Principle

LED Curing Light is applied to ray radiation principle to solidify the light-sensitive resin by shooting at it in a short time.

3. Intended use

Used for polymerization of light cured materials by dental professionals.

4. Main Technical Index

4.1 Power Adapter Li-ion Battery

- Input: AC 100~240V, 50/60Hz

- Voltage: DC 3.7V - Output: DC 4.2V

- Capacity: 2200mAh

- Charging Time: About 5 hours

4.2 LED

- Outer Diameter: Ø8mm - Area: 50mm2

- Wavelength: 450~470nm

Illumination:1200-1500mw/cm2

Three Curing Mode:

P1: FAST Mode – full power all the time

P2: RAMP Mode – gradually increasing power then full power till ends

P3: PULSE Mode – 1 second interval with full power for 1.8 second

4.3 Dimension:

Main Unit (Control Part): 26*40*145mm

Charging Base: 60*100*70mm

4.4 Net weight: about 320 g

4.6 Working Environment

Ambient temperature: 5℃ ~ +40℃

Relative humidity range: 0% ~ 80%

Atmospheric pressure: 70KPa ~ 106KPa

5. Structure and Components

1. Light guide 2. Circular eye-protector

3. power adapter 4. Charging base

5. Hand piece 6. LCD Panel

7. Setting Buttons 8. Charging Indicator

8. Color available: White, Blue, Purple, Gloden, Green, if there’s no tips left with order we will arrange a random color.
