Portable High-Frequency Dental X-Ray Unit with Intraoral Sensor Kit Handheld Imaging Device
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!

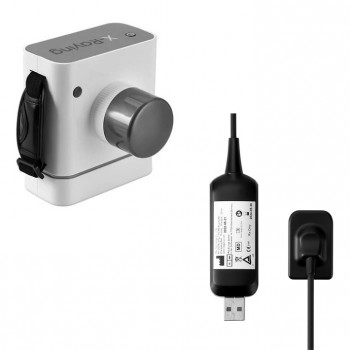

High Frequency Dental Handheld Portable X Ray Unit + Intraoral X-ray Sensor Kit
High Frequency Handheld Portable Dental X Ray Machine Digital Intraoral Imaging System RAY-200
Features
Small, lightweight, and portable design.
High-frequency machine with DC power supply.
Central PC board with insulated vacuum components.
Preset exposure times for adults and children.

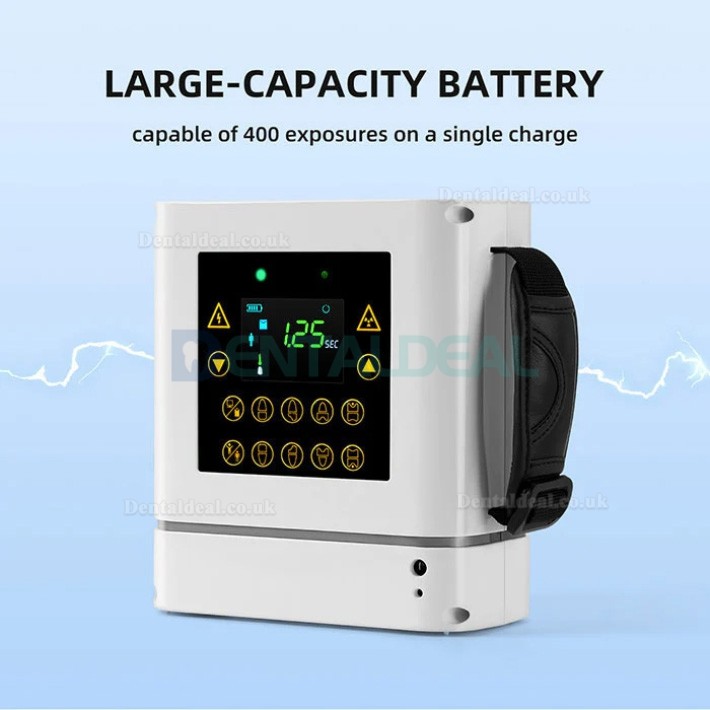

Built-in battery designed for about 400 exposures per full charge.
Radiation leakage: <20 μGy/h.
Usage Note
Allow 1 minute after powering on for voltage stabilization.
Wait for readings to normalize between exposures.
Technical Parameter:
Tube Voltage:60KV
Tube Current:2mA
Exposure Time:0.1~2.0s
Frequency:30KHz
Rate Power:120VA
Distance From Skin To Cone:118mm
Tube Focus:0.4mm×0.4mm
Battery:DC14.8V 2200mAh
Charger Input Voltage:AC100V-240V±10%
Output Voltage:DC16.8V
Ambient Temperature:5℃~40℃
Relative Temperature:<75%RH;
Packing List
Main Body:1Pc
Charger:1Pc
User Manual:1Pc;

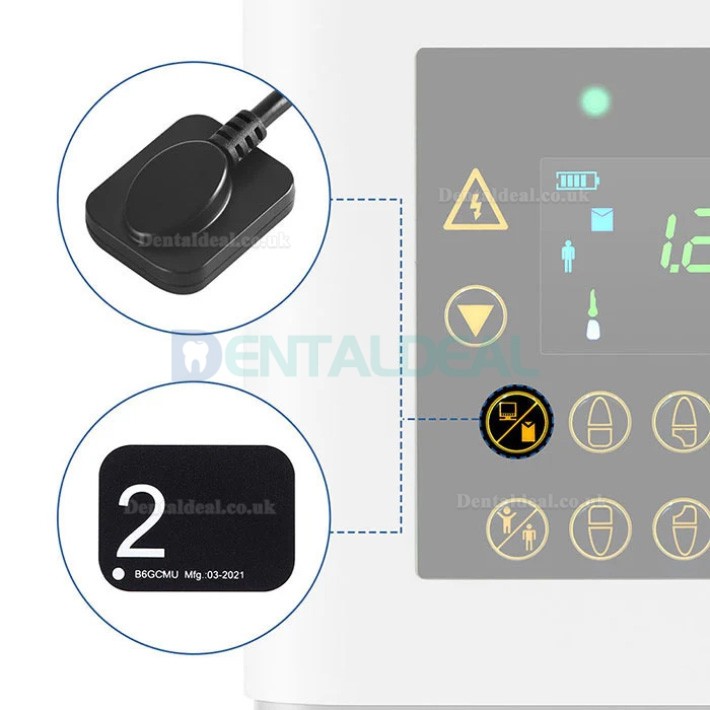

Dental Digital X-Ray Sensor RVG Intraoral Sensor System HD Image With Software S1/S2
Features:
Available in two sizes with rounded corners and a thickness of 4.4mm.
CMOS detector technology with CSI scintillator.
Compatible with standard x-ray generators.
Hardware and software requirement:
Processor :1.0GHz or above
Memory :2GB or above
Hard disk :64GB or above
Display resolution :1440*900 or above
USB port :USB2.0
Operating system :Windows 7,Windows10,Windows11;
Technical parameter:
| S1 | S2 | |
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | CsI | CsI |
| Theoretical Resolution | 25lp/mm | 25lp/mm |
| True Resolution | 20lp/mm | 20lp/mm |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Active Area(mm) | 20*30 | 26*36 |
| Mechanical Size(mm) | 25.4*38.2*4.4 | 30.4*44*4.4 |
| Data interface | USB 2.0 | USB 2.0 |
| AD Conversion(bit) | 16 | 16 |

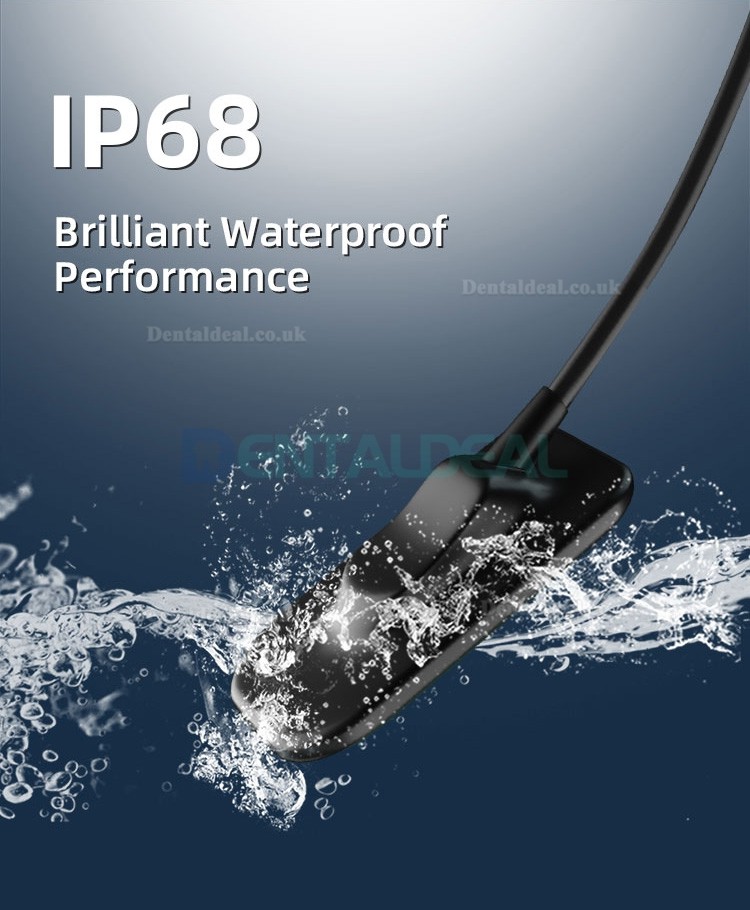

| Protection | IP68 | IP68 |

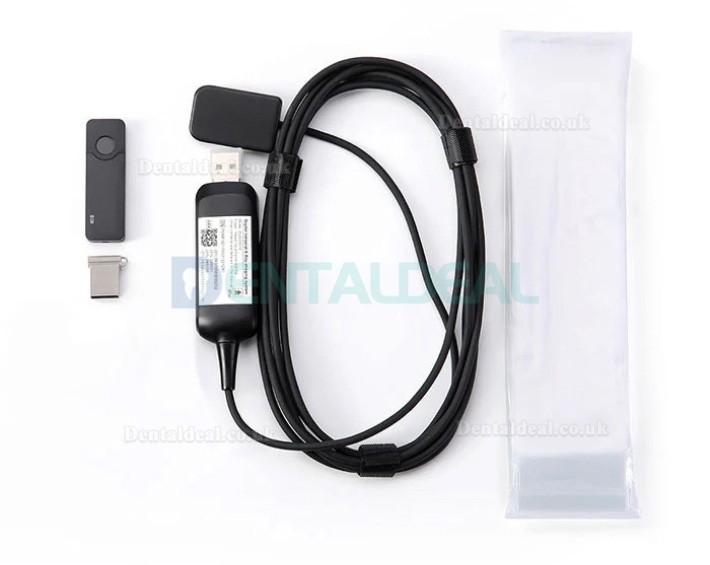

Packing list:
1. Sensor
2. USB flash disk (Software)
3. Protective sleeve;
