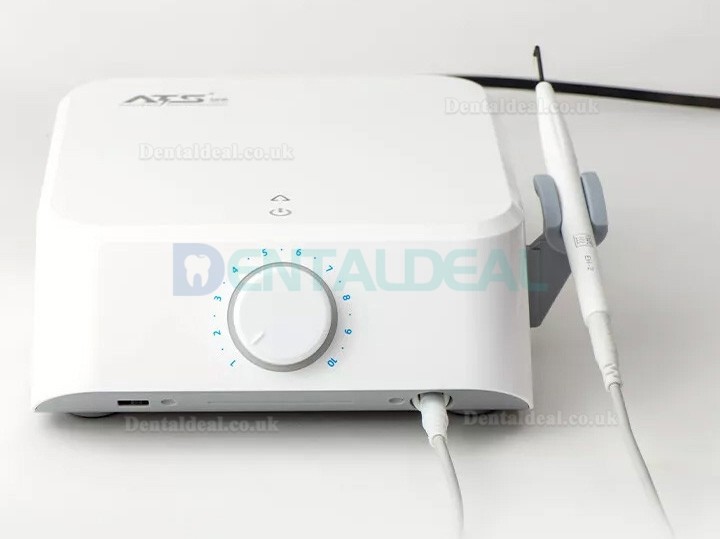

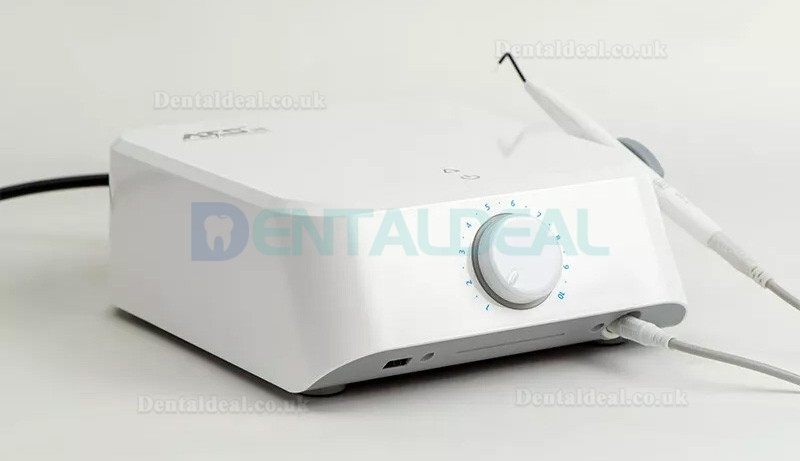

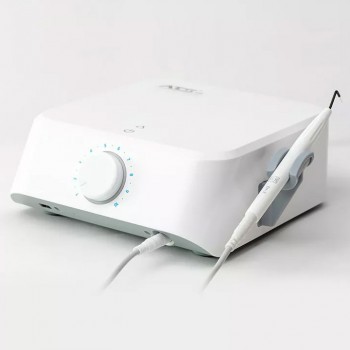

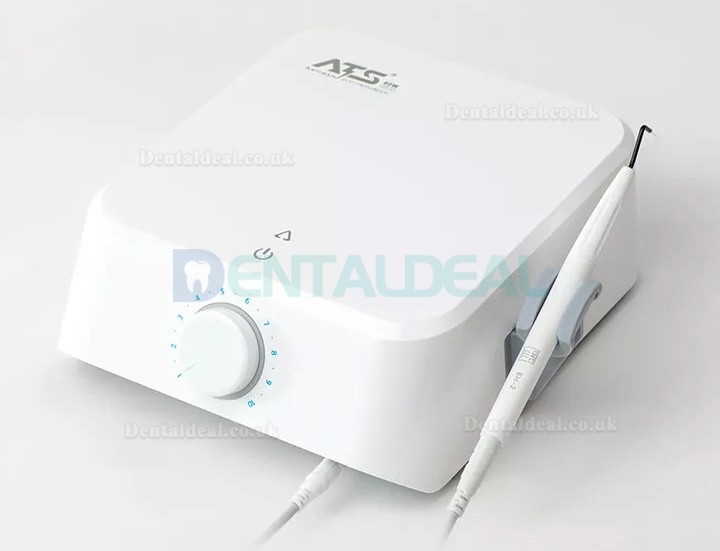

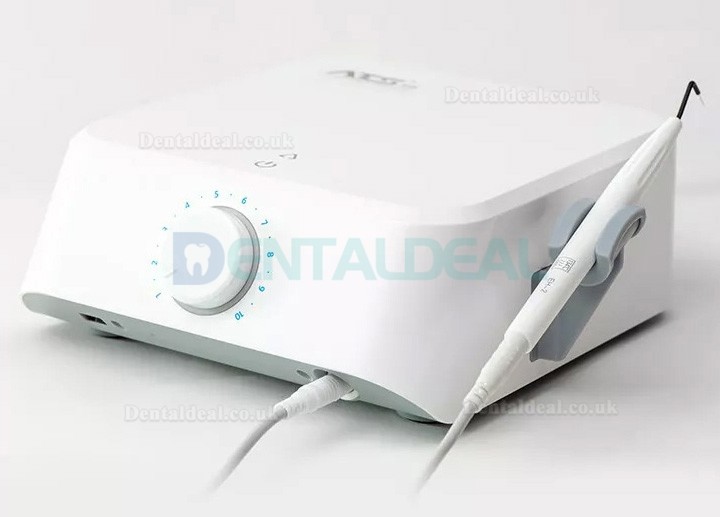

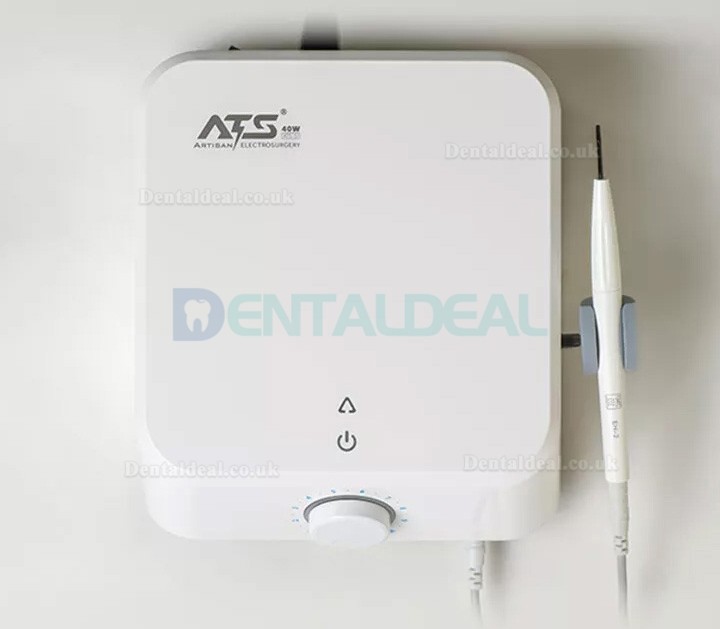

Neway ATS-S1 40W High-Frequency Dental Electrosurgery Unit with 7 Electrodes Tips
Features:
Intelligent coagulation mode: provides coagulation functionality.
Design: single-button operation.
Current control: constant current output.
Procedure support: Assists in bleeding control and procedural visibility.
Cutting mode: linear cutting.
Application scope: for use in dental implant, orthodontic, periodontal, and maxillofacial procedures.

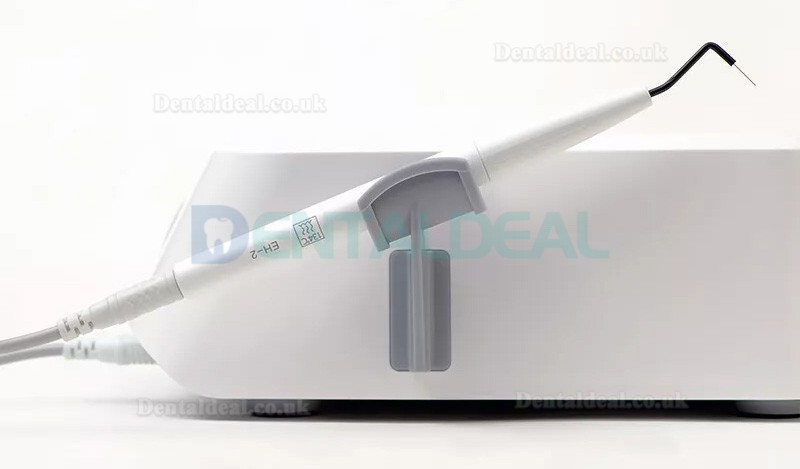

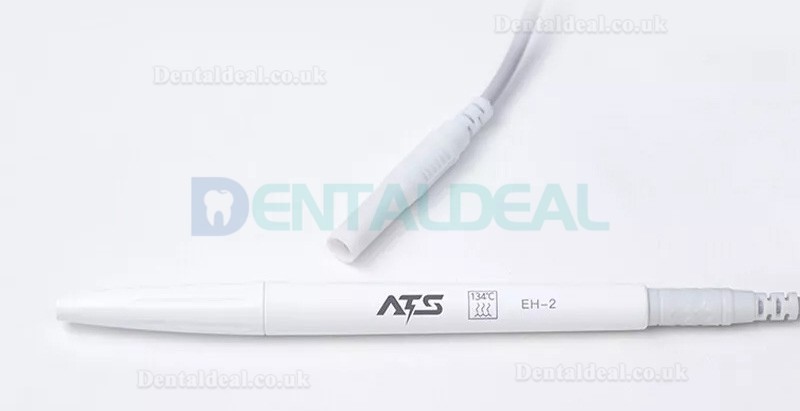

Handpiece: detachable and autoclavable.
Electrode design: insulated sheath with exposed active tip.
System compatibility: compatible with multiple electrode types.
Conductive bracelet: contact-type neutral bracelet.

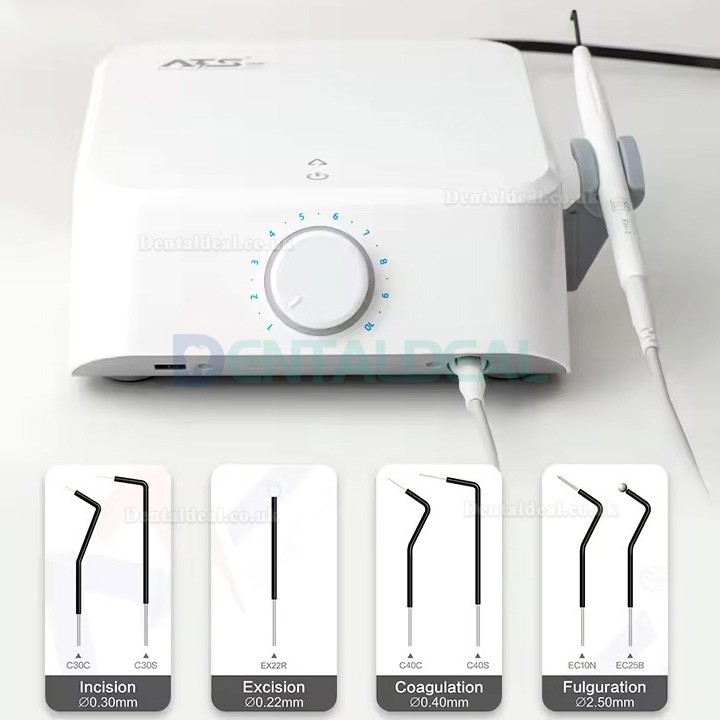

Electrode options: 7 hyperfine electrodes with varied shapes and diameters.

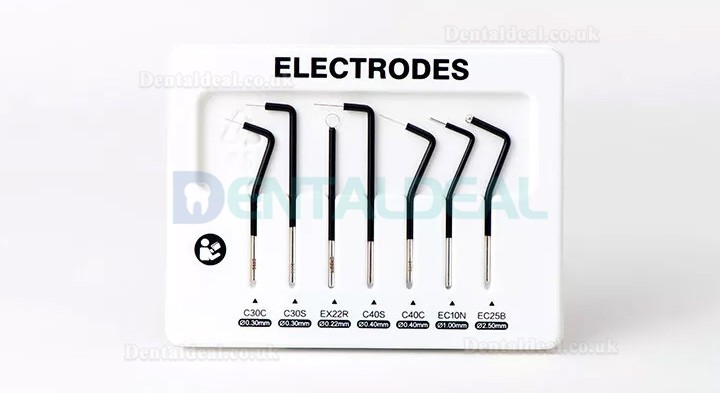

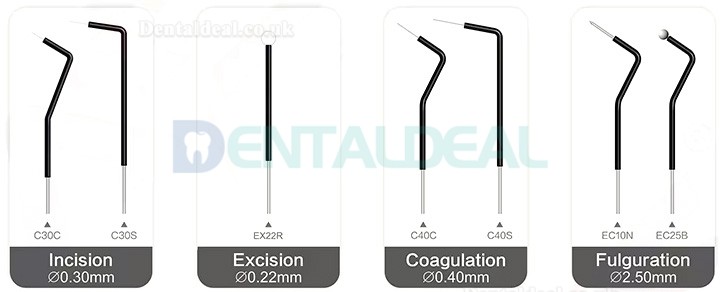

Electrodes classification
7 hyperfine electrodes with varied shapes and diameters.
For use in confined surgical areas.
.jpg "Neway ATS-S1 40W Dental Electrosurgical System with 7 Electrodes Tips")
Technical Specifications:
Product Model: ATS-S1
Supply Voltage: 110/220V, 50/60Hz
Max Power Output: 40W ±10%
Net Weight: 1.85 kg
Gross Weight: 2.5 kg
Main Unit Weight: 1.3 kg
Main Unit Dimensions: 21 x 18 x 8 cm
Package Dimensions: 25.5 x 24.1 x 18.5 cm
Accessories List:
Main Unit x 1
Electrode x 7 pcs/box
Electrode Holder (with cord) x 1 set

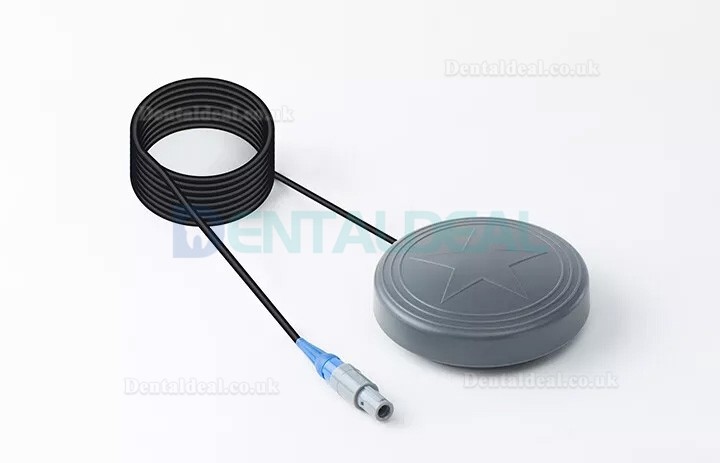

Wired Footswitch x 1 pc
Power Cable (with grounding) x 1 pc
Electrode Holder Silicone Pad x 2 pcs
Bracelet (Neutral Electrode) x 1 pc
User Manual x 1 pc
Warranty Card x 1 pc
Packing List x 1 pc
Quick Guide x 1 pc
Handpiece Stand x 1 pc
| Model | ES-20 | ATS-S1 |
| Market Entry Year | 2022 | 2024 |
| Clinical Testing Duration | 12 months | 16 months |
| Power | 30W±10% | 40W±10% |
| Control Knobs | 2 | 1 |
| Cutting | Linearly adjustable power | Linearly adjustable power |
| Coagulation | Adjustable | Intelligent adjustment |
| Grounding Pad | Velcro wristband | Velcro wristband |
| Handle | Heat sterilizable (integrated, non-detachable) | Heat sterilizable (handle detachable for sterilization) |
| Handle Connection Cable | Integrated, non-detachable | Handle detachable for sterilization |
| Electrodes | 7 (universal) | 7 (universal) |
| Volume Switch | - | Switchable |
| Footswitch | Small footswitch | Large footswitch |
| Device Dimensions | 233*233*106mm | 210*180*80mm |
| Packaging Dimensions | 370*370*170mm | 255*241*185mm |
| Net Weight | 1.5KG | 1.3KG |
| Gross Weight | 3.2KG | 2.7KG |
| Operating Frequency | 1.2MHz ± 10% | 1.2MHz ± 10% |
| Maximum Output Voltage | 400V+10% | 550V |
| Peak Factor | 1.7±10% | 1.7±10% |
| Input Power | 170VA | 170VA |
| Main Fuse | T2AL 250V | T2AL 250V |
| Circuit Board Fuse | TO.5AL 250V | TO.5AL 250V |
| Peak Factor | 110/220VAC 50/60Hz | 110/220VAC 50/60Hz |
