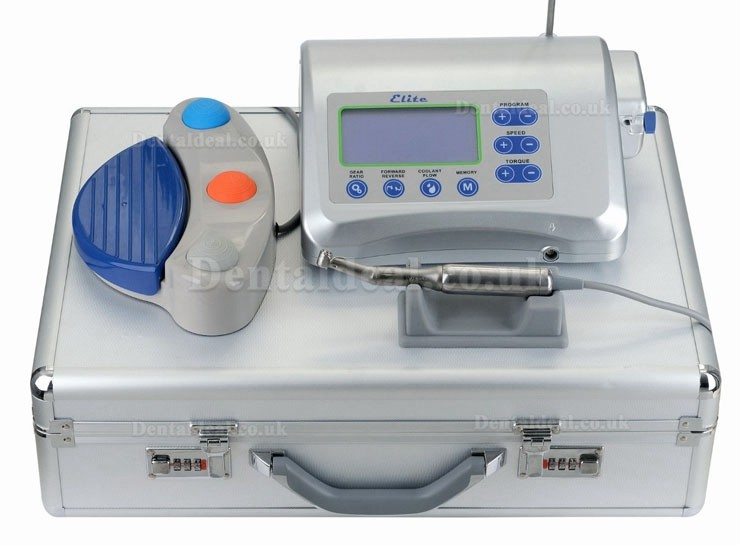

Victory® Elite V-DIM-I Dental LCD Brushless Surgical Implant Drill Motor Machine System +Handpiece+Foot Control

Victory Elite Dental Implant Motor V-IM-I with 20:1 Contra Angle brushless motor

Features

1. Intuitive LCD display and control panel, which bring convenience to the operation;
2. Original imported brushless motor, which is characterized by great torque, low noise, non-vibrations as well as accuracy and can be sterilized by high temperature;
3. Alternative input supply voltage: AC100-110V or AC220-240V;
4. Multifunctional foot switch, which is not only handy to operate but also against cross-infection caused by the contact between hands and the device;
5. Adjustable rotation speed, torque, coolant flow and forward/reverse, which can meet various demands during implanting process;
6. Ten types of reduction control angles, which are able to be selected as you need for operations;
7. Ten kinds of program settings, each of which allows setting up different numerical values of rotation speed, torque, coolant flow, forward/reverse or reduction ratio for practical needs.
8. You could connect the contra angle of any ratio (For example 20:1) you need with our brushless motor.

Technical Specifications:

1) Input Power Supply: AC100-110V or AC220-240V  50/60HZ;

2) Output Power: 210W;

3) Motor Rotation Speed Range: 500rpm-40000rpm (1:1);

4) Torque Range: 10-60N.cm (20:1);

5) Coolant Flow: 0-100ml/min;

6) Stored Programs: 10 types;

7) Foot Switch Control: Coolant Flow, Program, Forward / Reverse, Speed.
