Woodpecker Dental LED Built in Ultrasonic Scaler Handpiece UDS-N3 LED Fit EMS
Woodpecker Dental LED Built in Ultrasonic Scaler Handpiece UDS-N3 LED Fit EMS
Descriptions:
1. Detachable handpiece with light, autoclavable.
2. Automatic frequency tracking.
Techincal Specifications:
1. Power input: Without transformer 24V~ 50Hz/60Hz 1.3A
2. Output primary tip Vibration excursion: ≤100μm
3. Output half-excursion force: <2N
4. Output tip Vibration frequency: 28kHz±3kHz
5. Output power: 3W to 20W
6. Water pressure: 0.01MPa to 0.5MPa
7. Weight of main unit: 0.2kg
8. Weight of transformer: 1kg (optional)
9. Dimensions：74mm×56mm×38mm
10. Operating mode: Continuous operation
11. Type of protection against electric shock: Class II
12. Degree of protection against electric shock: Type BF applied part
13. Degree of protection against harmful ingress of water: Ordinary equipment (IPX0)
14. Degree of safety of application in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide: Equipment can not be used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide.

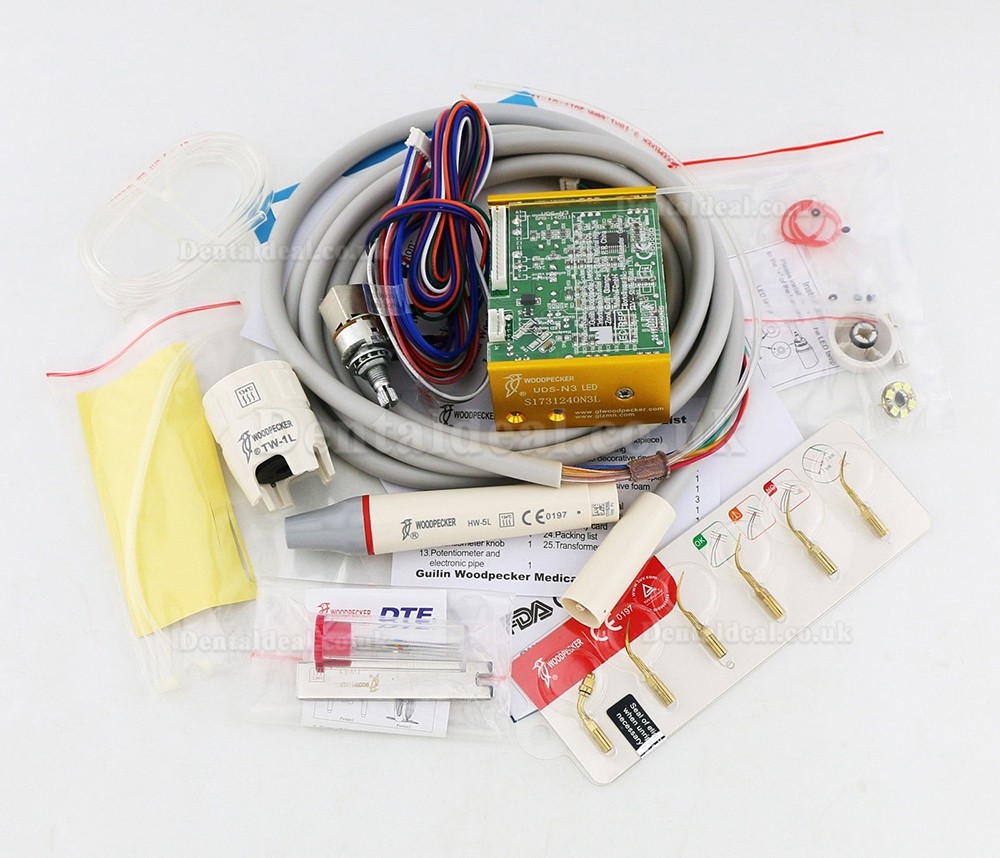

Packing List
1* Main unit
1* Detachable handpiece
1* Cable
5Tips:1*E1T 2*G1T 1* G2T 1* G4T 1* P1T
1* Torque wrench
1* Water pipe
1* Potentiometer knob
1* Potentiometer and electronic pipe
1* Cutting sleeve (for handpiece)
1* Instruction manual
