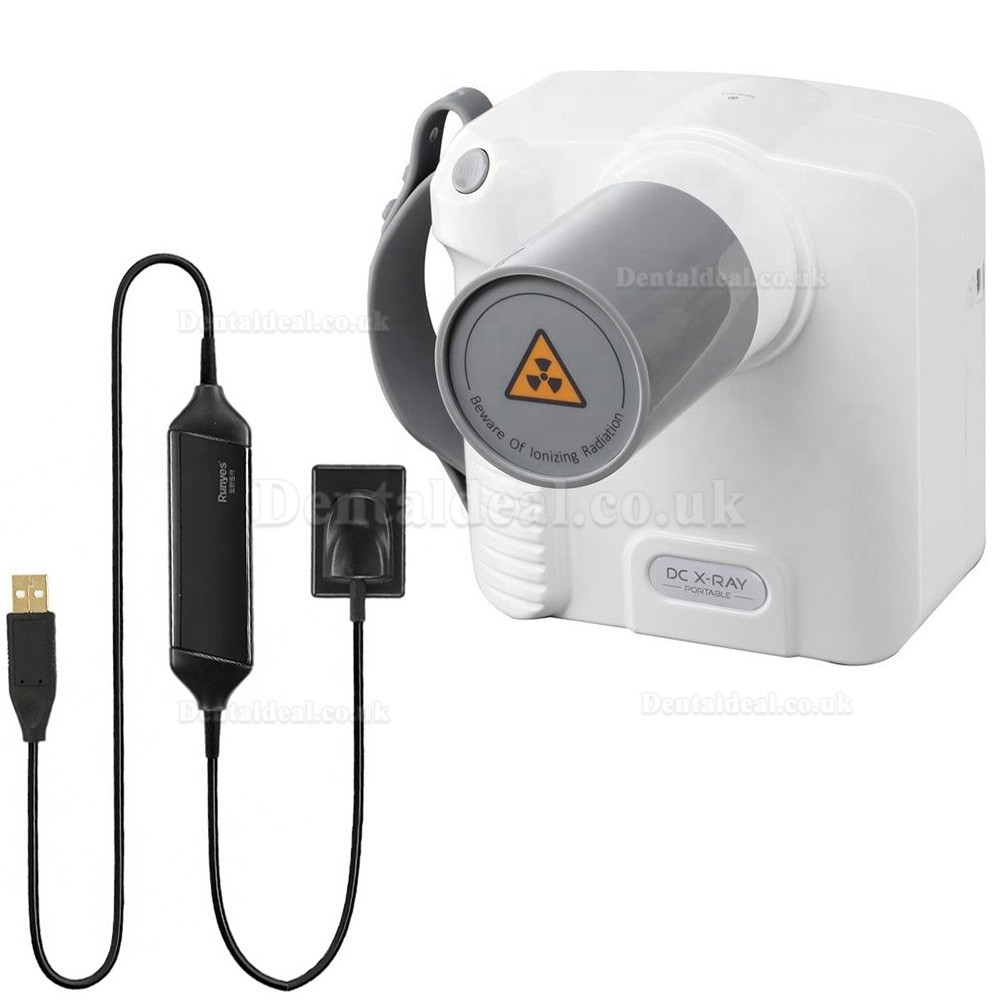

Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit
Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit
Runyes RAY98(P) Portable X-Ray Unit Dental Handheld X Ray Machine
Features
High-frequency portable dental X-ray unit
0.4 mm micro-focus X-ray tube
Anode angle: 12.5°
Exposure time range: 0.04–2.0 s
Digital display
Machine weight: 1.7 kg
About 150 exposures per full charge.
Technical Parameters
Model: RAY98(P)
Tube Voltage: 70 kV ±10%
Tube Current: 2 mA ±20%
Charger Input Voltage: 100–240 V
Frequency: 50/60 Hz
X-ray Tube: D-045
Anode Angle: 12.5°
Focal Spot: 0.4 mm
Exposure Time: 0.04–2.0 s
Leakage Radiation: 0.25 mGy/h at 1 m
Machine Weight: 1.7 kg
Relative Humidity: 30%–75% RH;
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
.jpg "Runyes Portable Dental X-Ray Machine + Intraoral X-ray RVG Sensor DR730 Kit")
Runyes DR730 Dental X-Ray RVG Sensor Intraoral Sensor Digital Imaging System
Features
PU cable sheath
Flexible cable design
Compatible with standard dental X-ray units
Sealed sensor design
IPX7 water resistance
Used for immersion disinfection with compatible liquid disinfectants.
Specification:
Model: DR730
Chip type: CMOS APS
Optical soldering panel: Yes
Scintillator: GOS 675mm²
Size: 27.5x39mm
Active area:22.5x30mm
Pixel size: 18.5um
Picture pixels: 1.9M (1600*1200)
Sensor thickness:6mm
Interface:USB2.0
Pair resolution:
Theoretical value: 27lp/mm
Actual value: 12-14lp (GOS)
Other/Additional: TWAIN Driver
Operating system: Windows XP/Win7/Win8/Win8.1/Win10 (32bit&64bit) has been certified by Microsoft;
Operating conditions
Environment Temperature : +10℃~+40℃
Environment relative humidity : ≤95%;
Air pressure : 860hPa~1060hPa;
Transport and Storage conditions：
Environment Temperature: -25℃~+60℃;
Environment relative humidity : 10%~93%;
Air pressure : 860hPa~1060hPa;
Packinglist：
1. Manual 1pc
