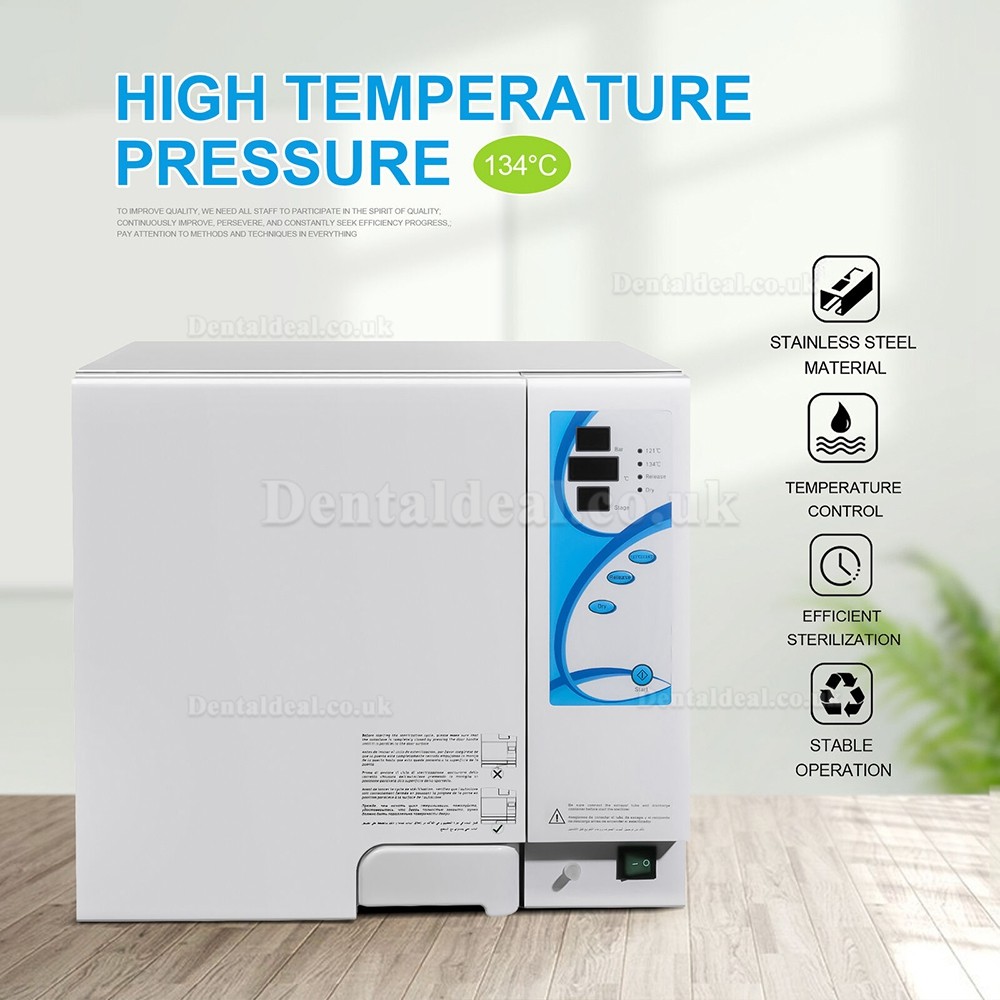

18-23L Automatic Dental Autoclave Steam Sterilizer Class N with Drying Function

18-23L Automatic Dental Autoclave Steam Sterilizer Class N with Drying Function

Application:

Series E is class N steam sterilizer series which includes the chamber size of 18L and 23L.


Features:

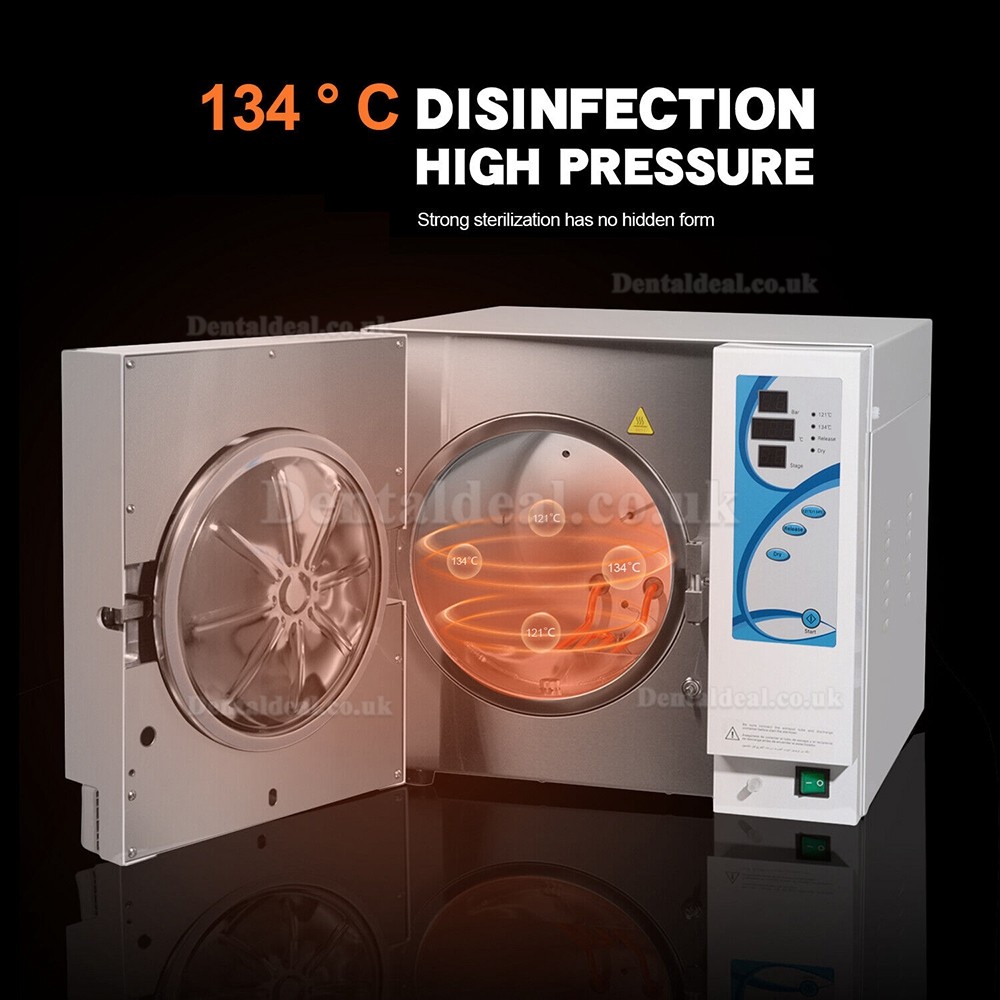

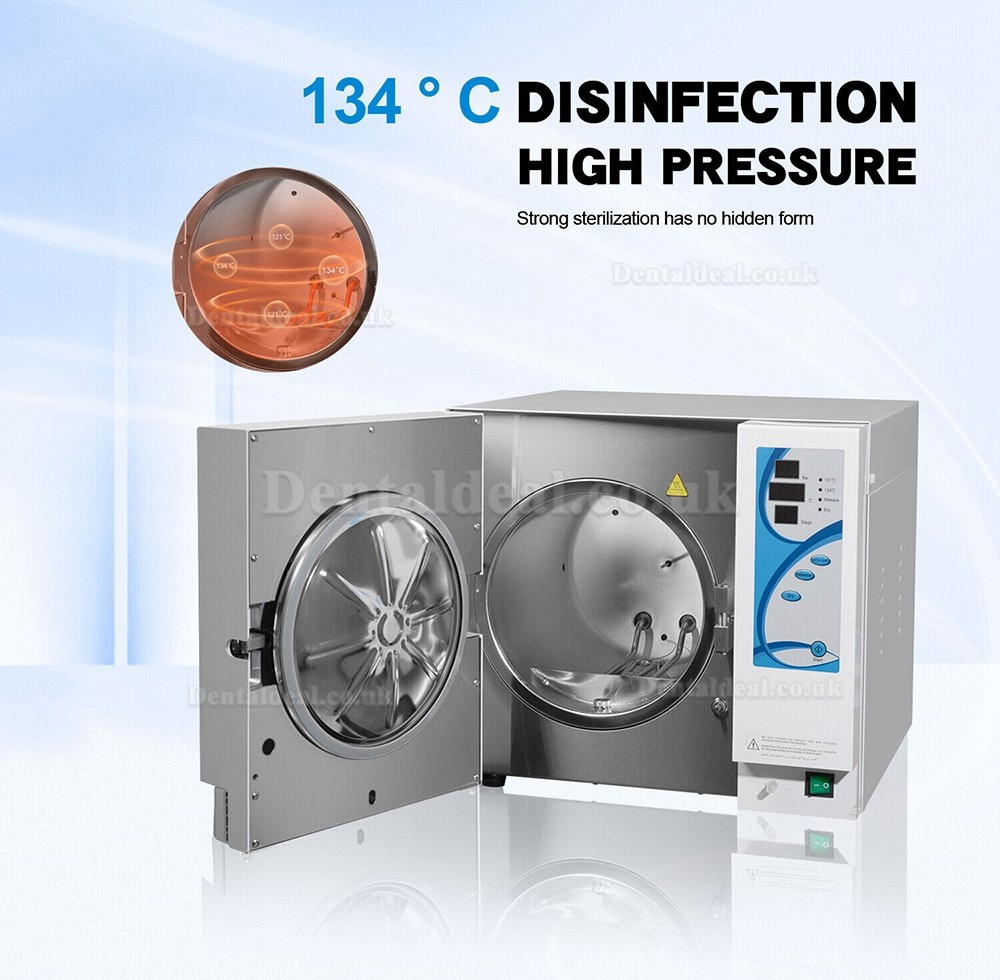

Sterilization cycles:Two sterilization programs, 121 °C/1.1 Bar and 134°C/2.1Bar.

Temperature control within 0.1°C

Time: Adjustable sterilization and drying time.

Protection:Temperature and pressure overload protection.

Pressure safety lock:It only allows the door to open when the pressure is 0.

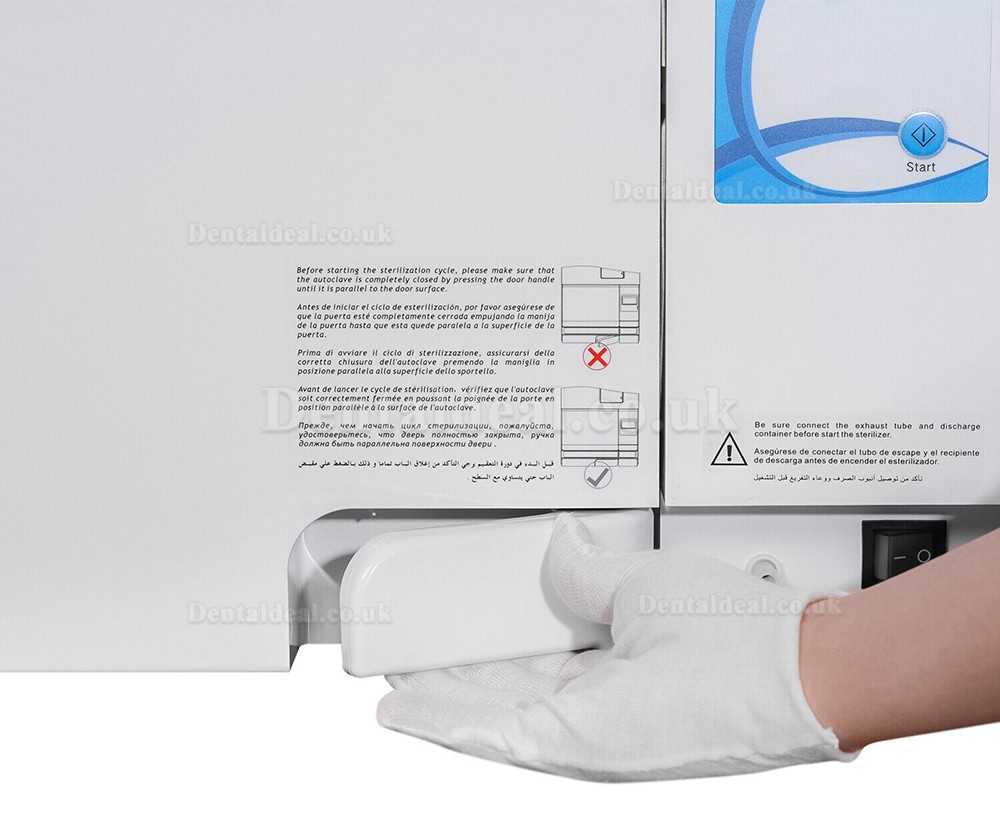

Safety door lock :It only allows the cycle to start when the door is properly locked.

Drying (option):Heat drying function.

Automatic pressure release:Automatically discharge of water and steam after cycle over.


STE-18-E 18L Parameter：

Model Number: STE-18-E(18L)

Chamber Size :250x350mm(18L)，

Bectrical Supply :220-240 V/50Hz, 110-120V/60Hz

Power:1500VA

Sterilization Temp. :121°C/134°C

Sterilization Tme 121 °C:Default 30min (30-60min adjustable)

Sterilization Tme 134°C :Default 1Om in (10-20min adjustable)

Pressure :1.1 Bar/121°C , 2.1 Bar /134°C

Automatic Discharge  Yes    Yes   Yes

DryTme   :No        Default  60min (1-60min adjustable)

Net Weight :33 kg(18L)；


STE-23-E 23L Technical Parameter：

Model Number: STE-23-E(23L)

Chamber Size :250x450mm(23L)

Bectrical Supply :220-240 V/50Hz, 110-120V/60Hz

Power:1500VA

Sterilization Temp. :121°C/134°C

Pressure :1.1 Bar/121°C , 2.1 Bar /134°C

Automatic Discharge  Yes    Yes   Yes

Net Weight : 36kg(23L)
