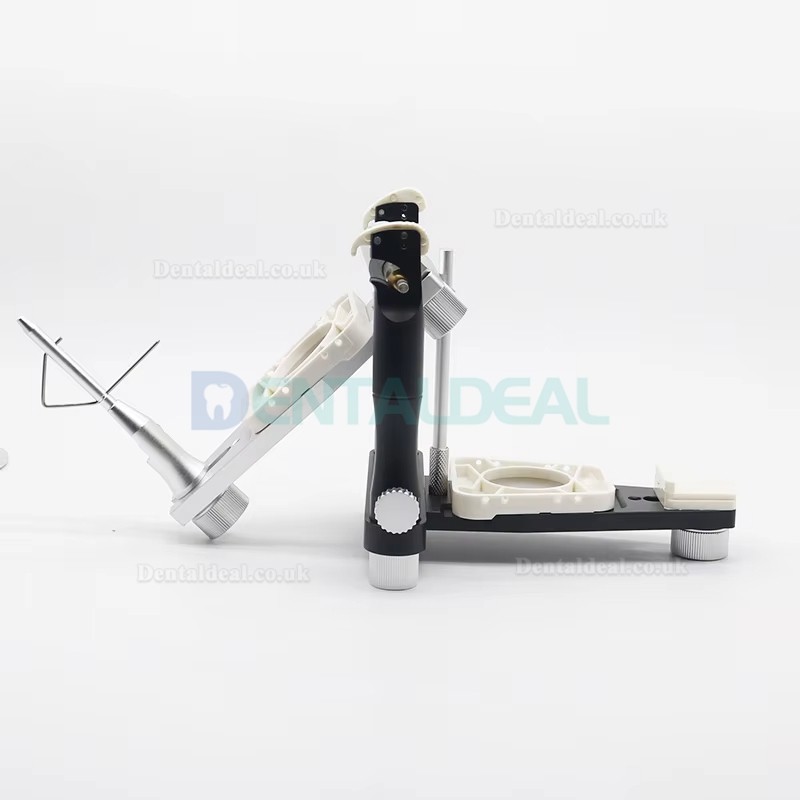

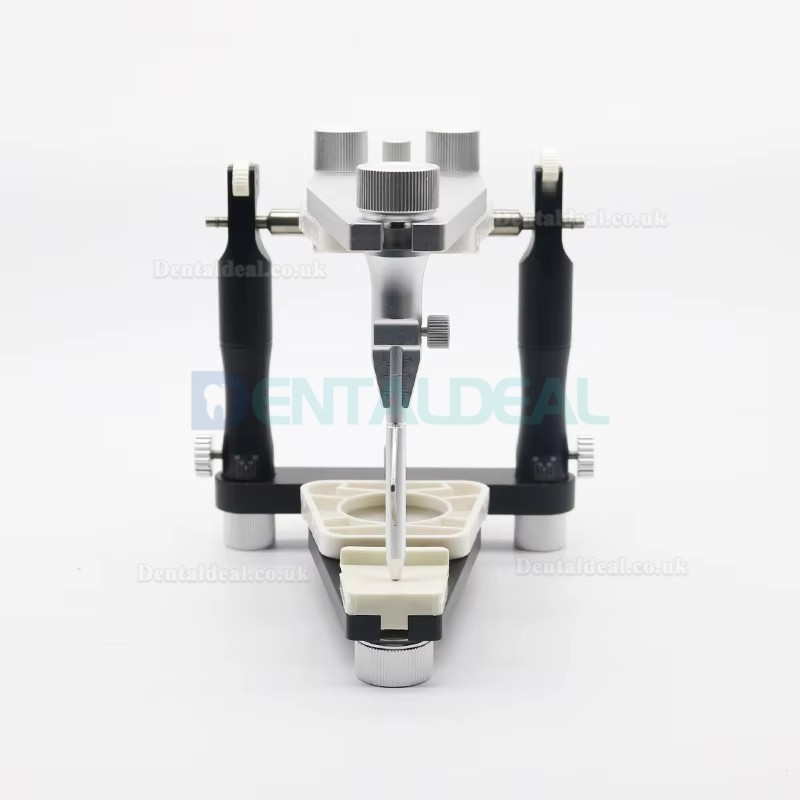

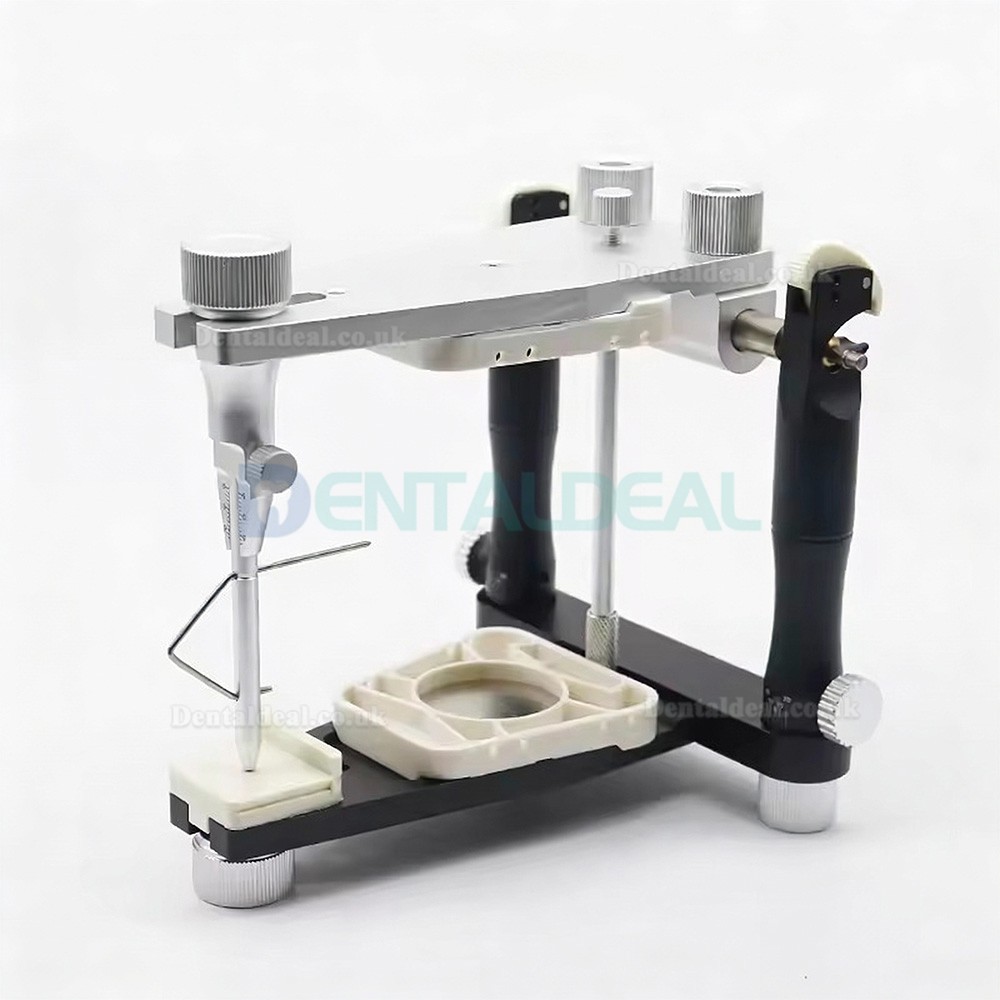

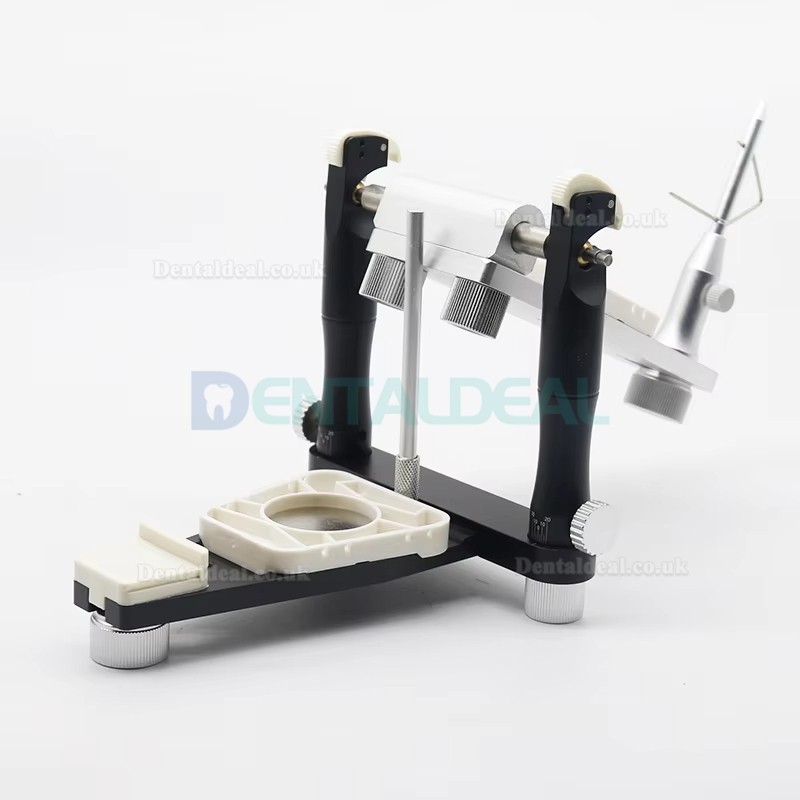

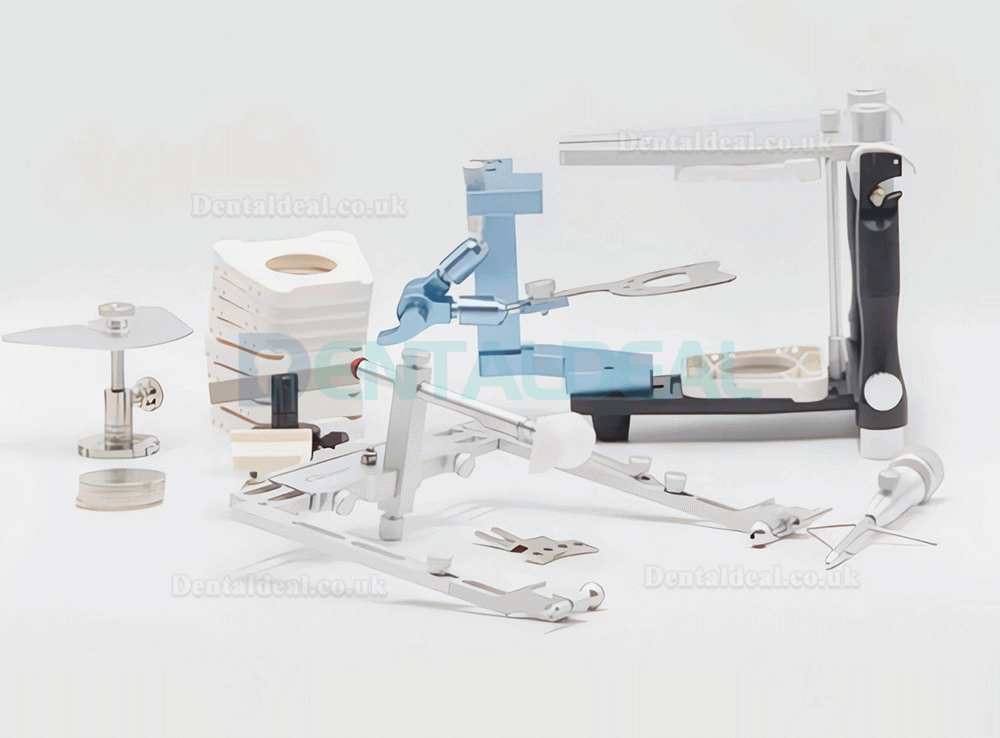

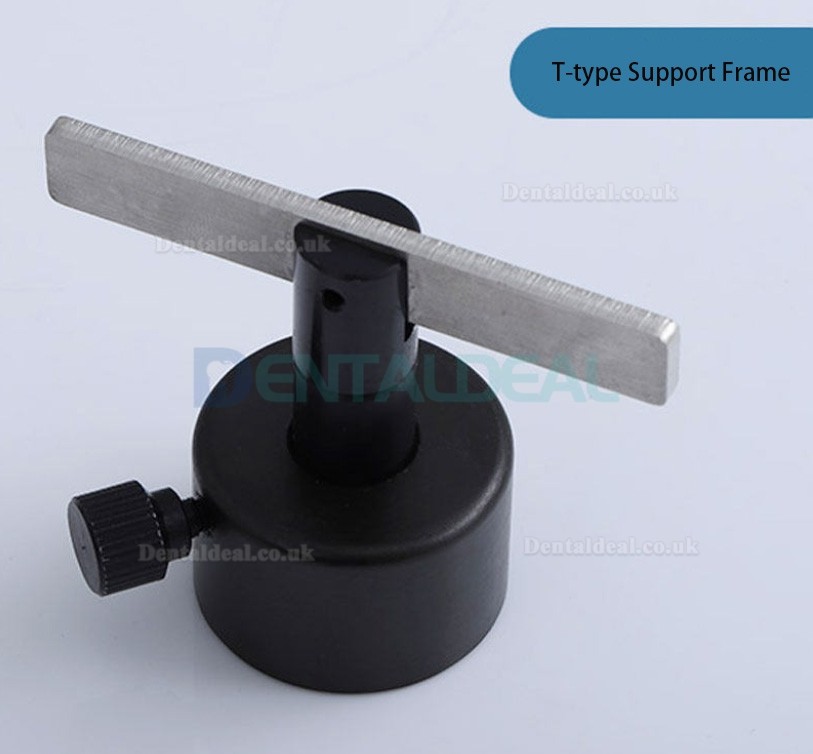

CL-3303 Semi Adjustable Dental Lab Articulador with Facebow, Transfer Stand & T-type Support Frame

CL-3303 Semi Adjustable Dental Lab Articulador with Facebow, Transfer Stand & T-type Support Frame Kit

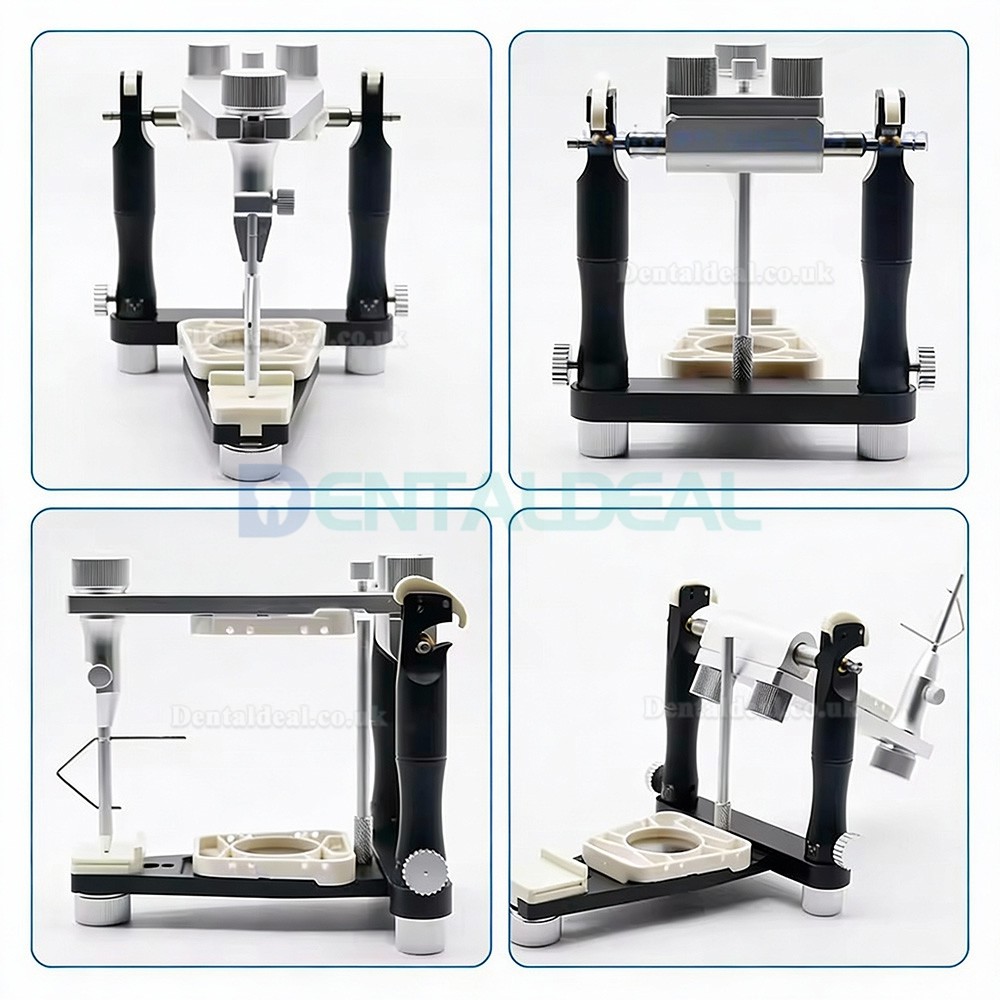

This semi-adjustable articulator integrates with the Artex mounting base plate system.


Specifications:

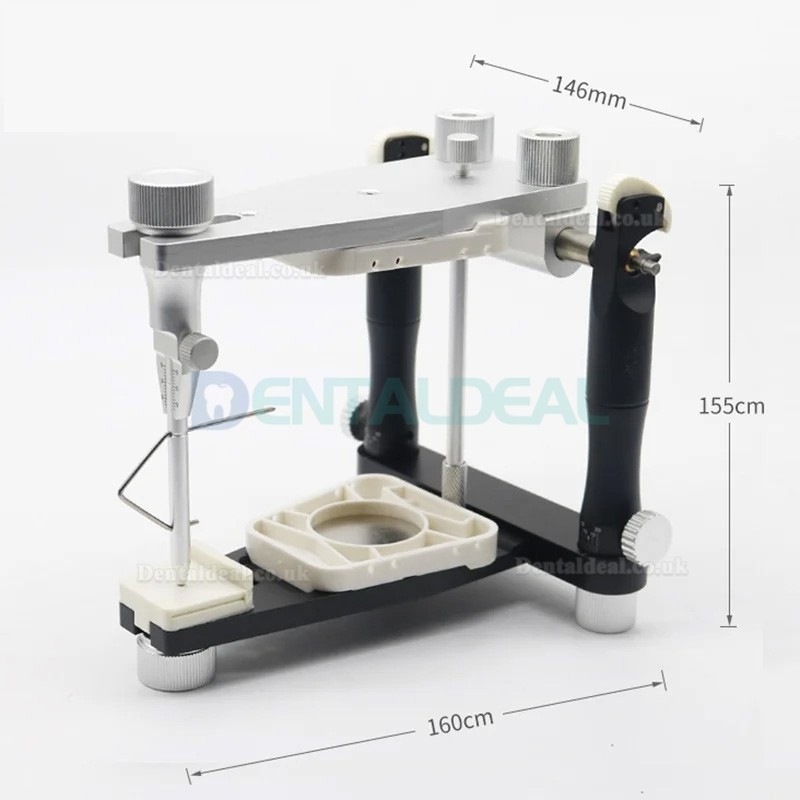

Construction Height: 126 mm

Sagittal Condylar Path: Fixed at 35°

Bennett Angle: Adjustable from 0° to 20°

Curvature Radius: 12.5 mm

Mounting Base: Magnetic, compatible with Artex



Features:

Adjustable Bennett Angle for condyle rotation simulation.

35° sagittal condylar path allows protrusion and retrusion inclination adjustment on both sides.

Magnetic mounting base supports model transfer.

Buckle controls enable centralized articulator movement.

Articulator with Facebow Integration:

Facebow transfer devices capture maxillary arch data.

Adjustable maxillary plastic buckle controls protrusion, retrusion, and centralized movement.

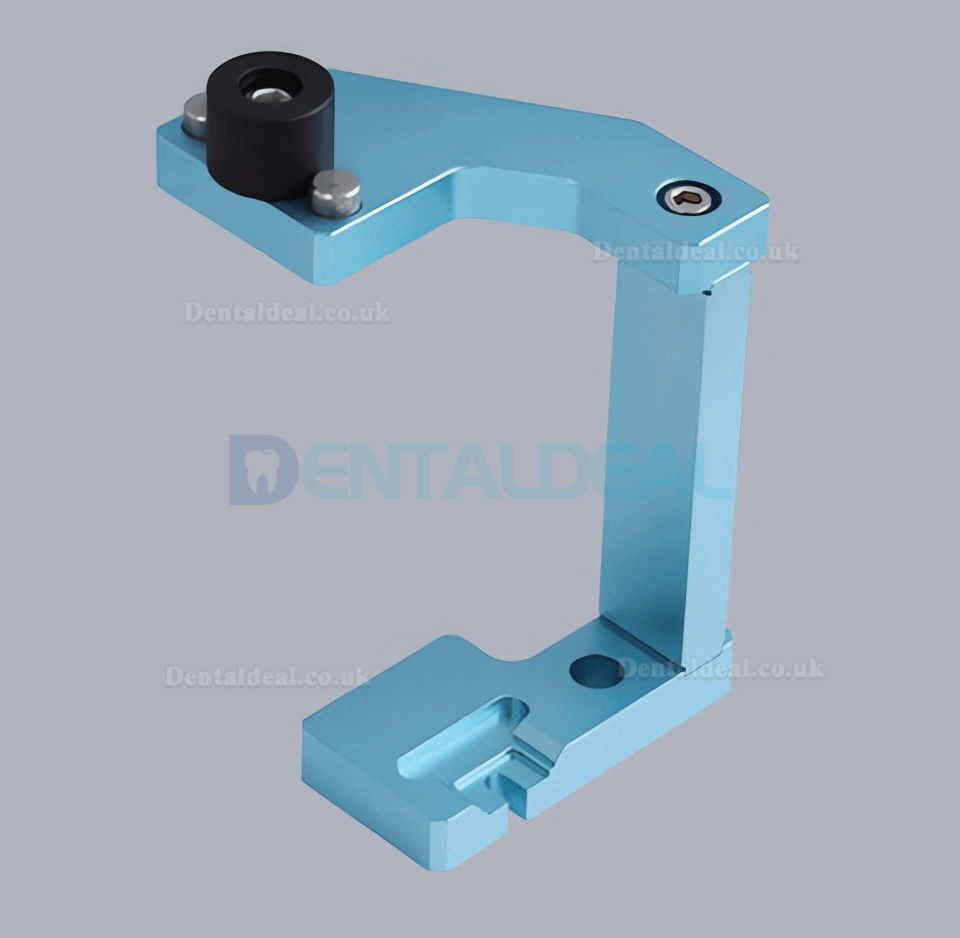

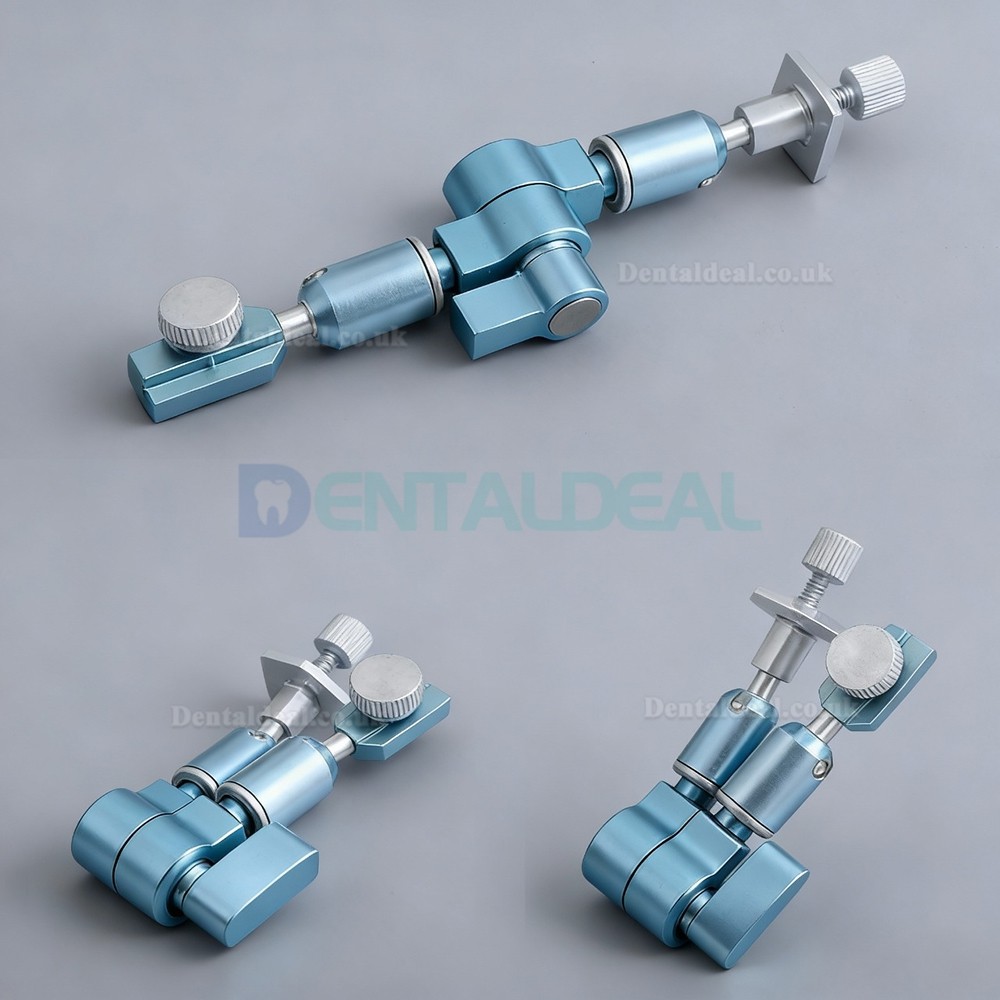

Transfer stand connects the facebow device to the articulator.

Impression data can be attached and locked for occlusal relationship transfer.



Procedure for Facebow Transfer:

Select compatible facebow device.

Position device in patient’s mouth to capture maxillary arch data.

Secure transfer stand to articulator.

Attach facebow impression fork to transfer stand.

Lock impression data and verify transfer accuracy.

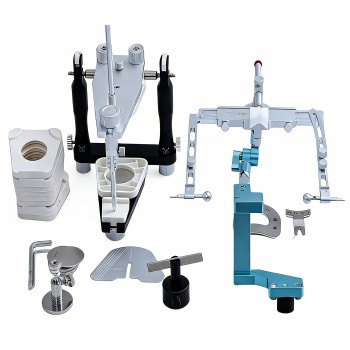

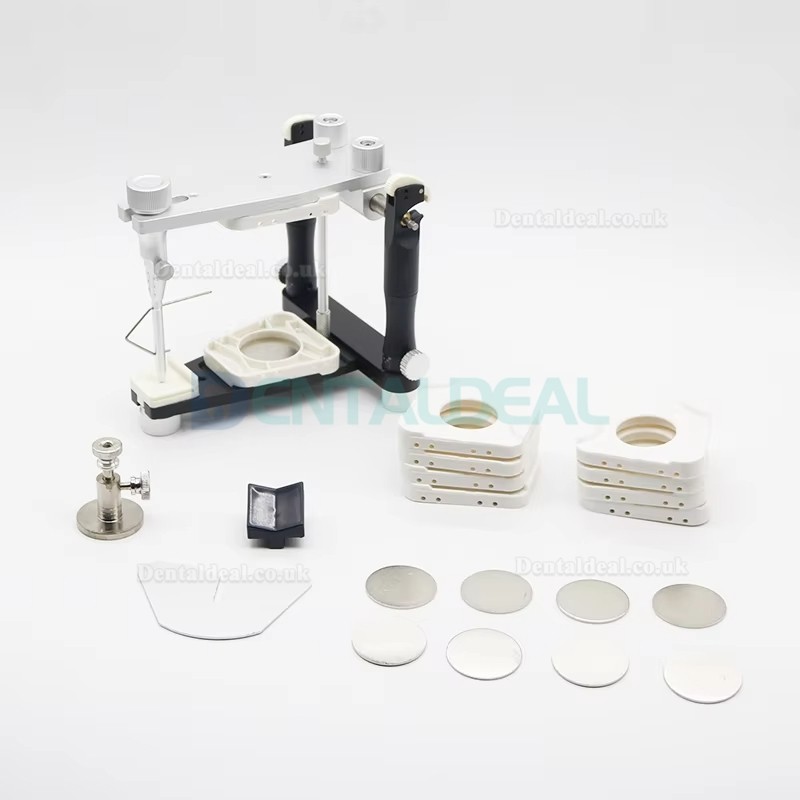

Semi-adjustable articulator packing list:

Semi-adjustable dental articulator: 1 pc

Disposable articulator mounting base (with metal plates): 8 pc

0-degree row teeth plate: 1 pc

15-degree anterior guide: 1 pc

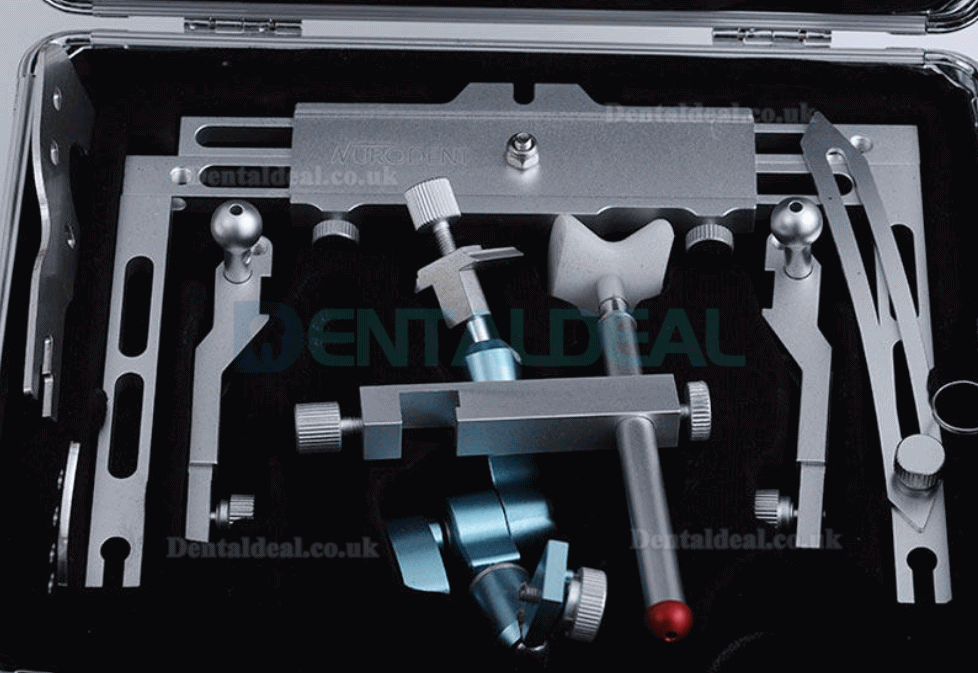

Facebow kit 1 pc

Transfer stand 1 pc
