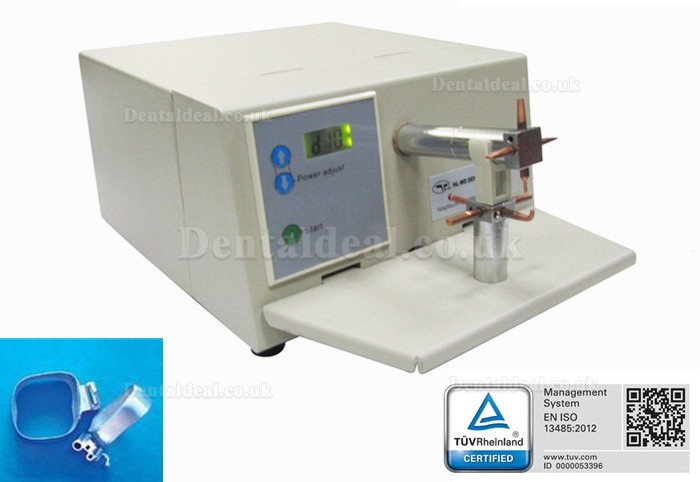

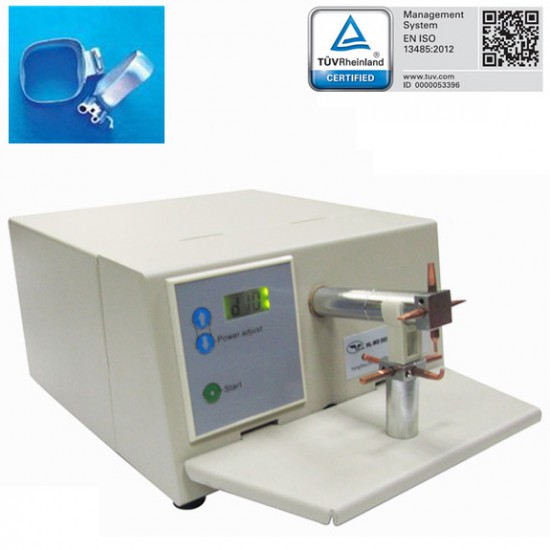

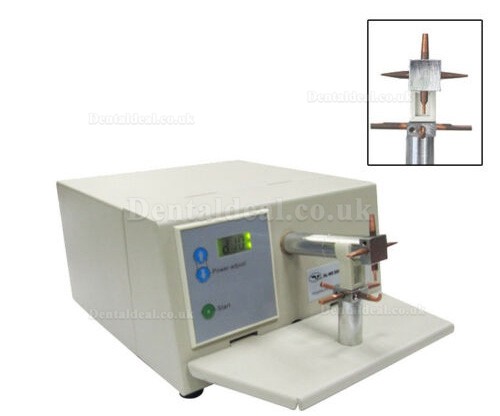

ZoneRay® HL-WDI Dental Lab Spot Welding Machine

ZoneRay® Dental HL-WDI Spot Welding Machine

Features:

1. Use for Orthodontic Materials

2. Apply to the material of 0.2mm-1.8mm

3. Spot Welding function

4. Adopt microprocessor control system, reliable quality

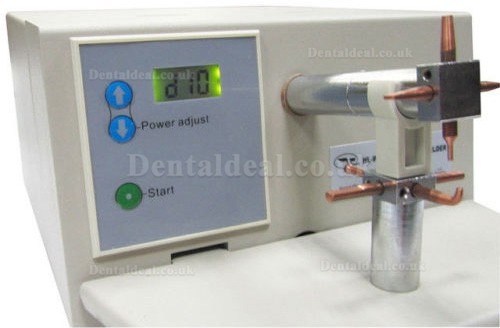

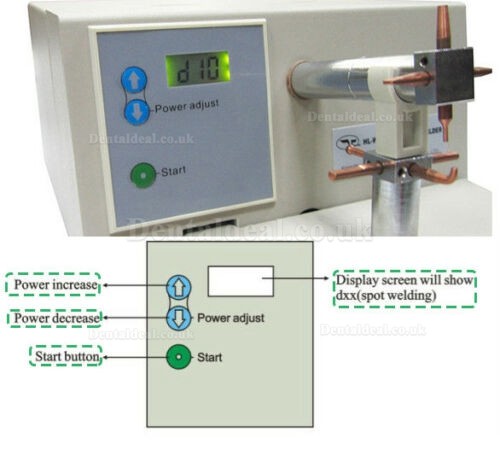

5. LCD Display functional mode and power parameter

6. Safety Feature: have overheating protection system

7. Automatic Alarm, when sub-pressure, overpressure and improper operation

8. With the welding parameters memory function

9. Welding electrodes can be chosen with different combination

Specifications:

Power supply:AC 110V, 60 Hz AC 220V, 50 Hz

Power:maximum instantaneous current 20A

Transformer output power:2000W,  output voltage: 5V

Incorrect operation alarm:when operation condition don’t accord with SET mode, the display shows Error beep.

Security type:belong to classⅠ, type B

Transformer overheating protection:85°C

Energy regulation:Spot welding (dxx)     1~30

Dimensions of weldment:Diameter 0.2mm~1.8mm stainless steel wire

Fuse:Diameter 5×20mm, 20A

Environment conditions:temperature 5°C~40°C, Relative humidity ≤80%

Storage condition temperature:10°C~55°C, Relative humidity ≤80%

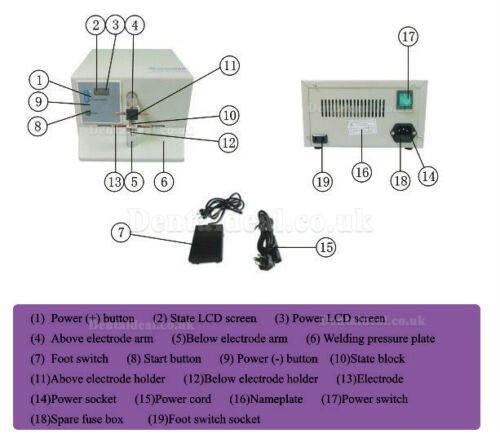

Package includes:

1*Main machine

1*Power cord

1*Foot switch

1*Fuse 20A

1*State block

1*Manual
