Touch Screen Dental Lab Zirconia Ceramic Crowns Oven Automatic Programmable Vacuum Porcelain Furnace

Dental Lab Automatic Programmable Vacuum Porcelain Furnace Zirconia Ceramic Crowns Oven Touch Screen

Features

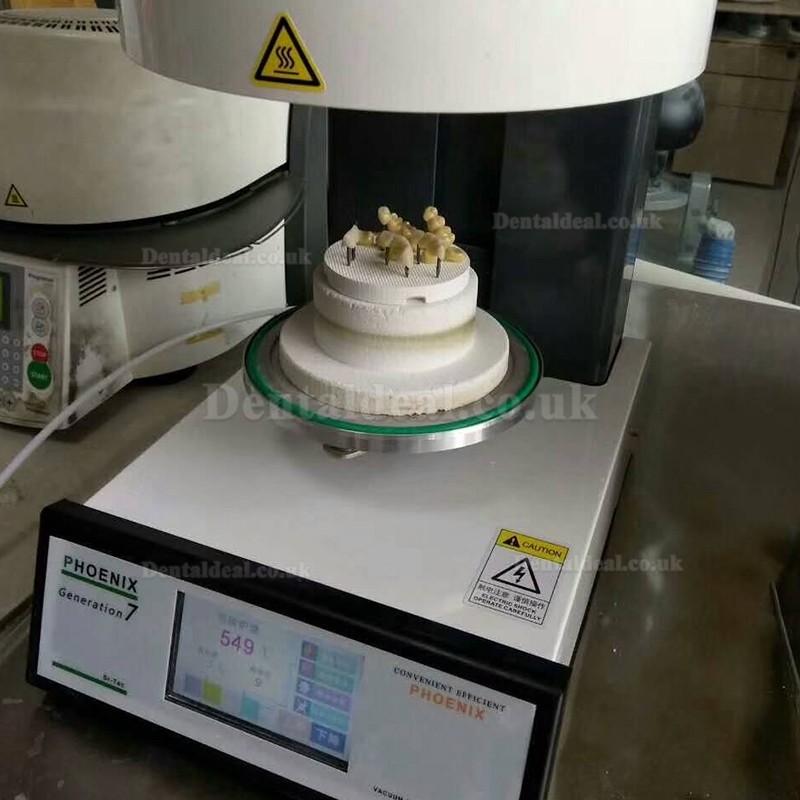

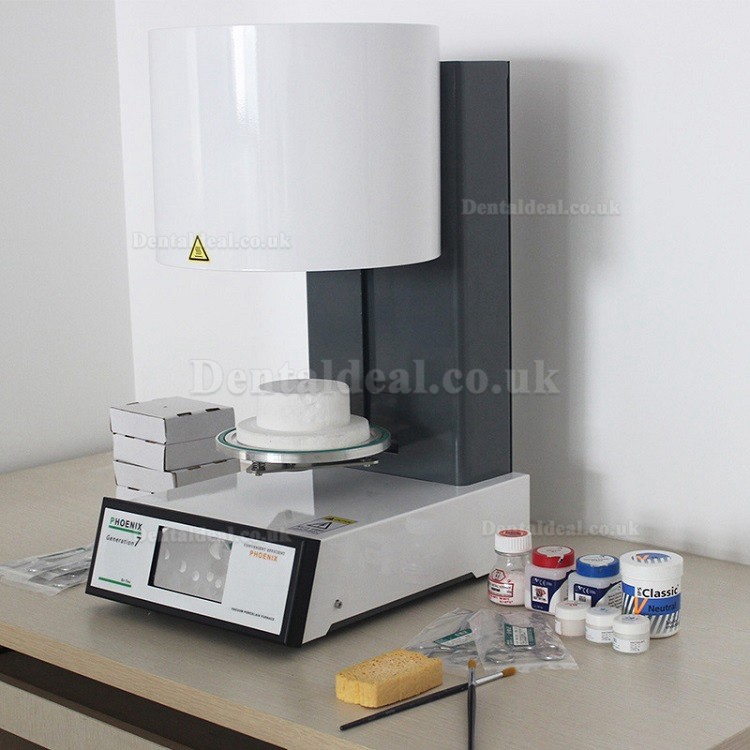

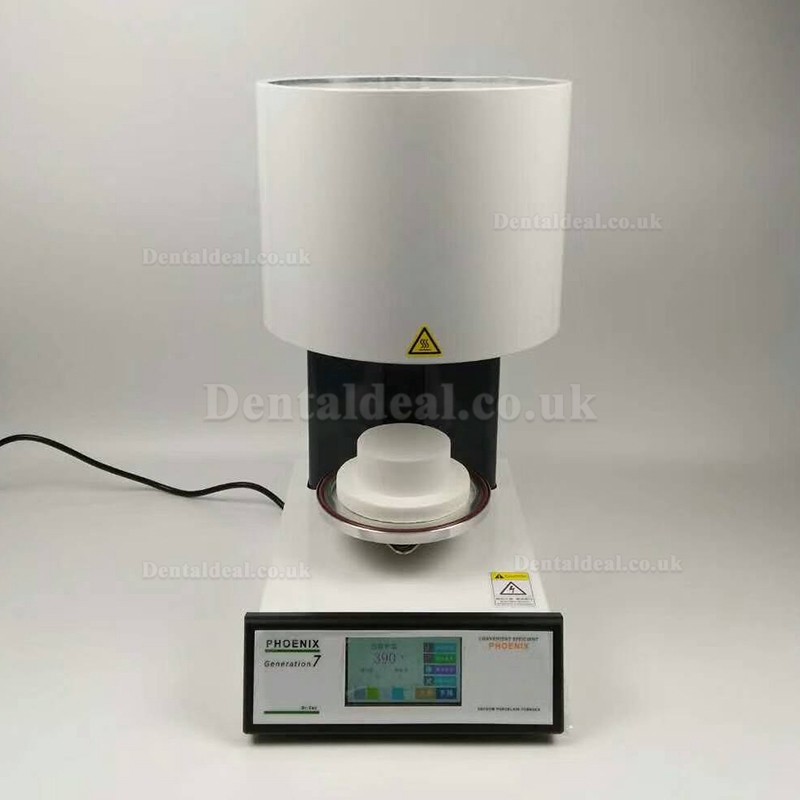

Dental furnace with color touch screen

Automatic temperature adjustment function

Stepper motor drive

Spiral quartz firing chamber

Temperature adjustment before each firing cycle

USB port for computer connection

Built-in 99 programs

Optical status display

Specifications

Operation

Max. Heating Rate: 200°C/min

Max. Temperature: 1200°C

Max. Holding Time: 2 h

Vacuum Level: 1–101%

Electrical Data

Voltage: 100–120 V, 50/60 Hz or 230 V, 50/60 Hz

Current: 14.5 A at 110 V / 7.0 A at 230 V

Power: Max. 1500 W

Dimensions and Weight

Size: 27 × 36 × 53 cm

Firing Chamber Size: 9 cm / 3.5 in

Net Weight: 20 kg

Package Weight: 23.5 kg

Operating Conditions

Indoor use only

Ambient Temperature: 2°C–40°C

Relative Humidity: 80% at 31°C

Maximum Altitude: 1500 m

Model Altitude: 3500 m

Rated voltage fluctuation: ±10%

Package Includes

1 × PHOENIX 7 furnace

1 × firing pan

1 × power connection cable

1 × furnace tweezers

1 × repair kit package
