Screw Remover Kit for removal of fractured screws from dental implants, allowing subsequent abutment connection.
Features
Removes fractured screw without damaging the fixture or removing the fixture
Removal time: approx. 3 minutes

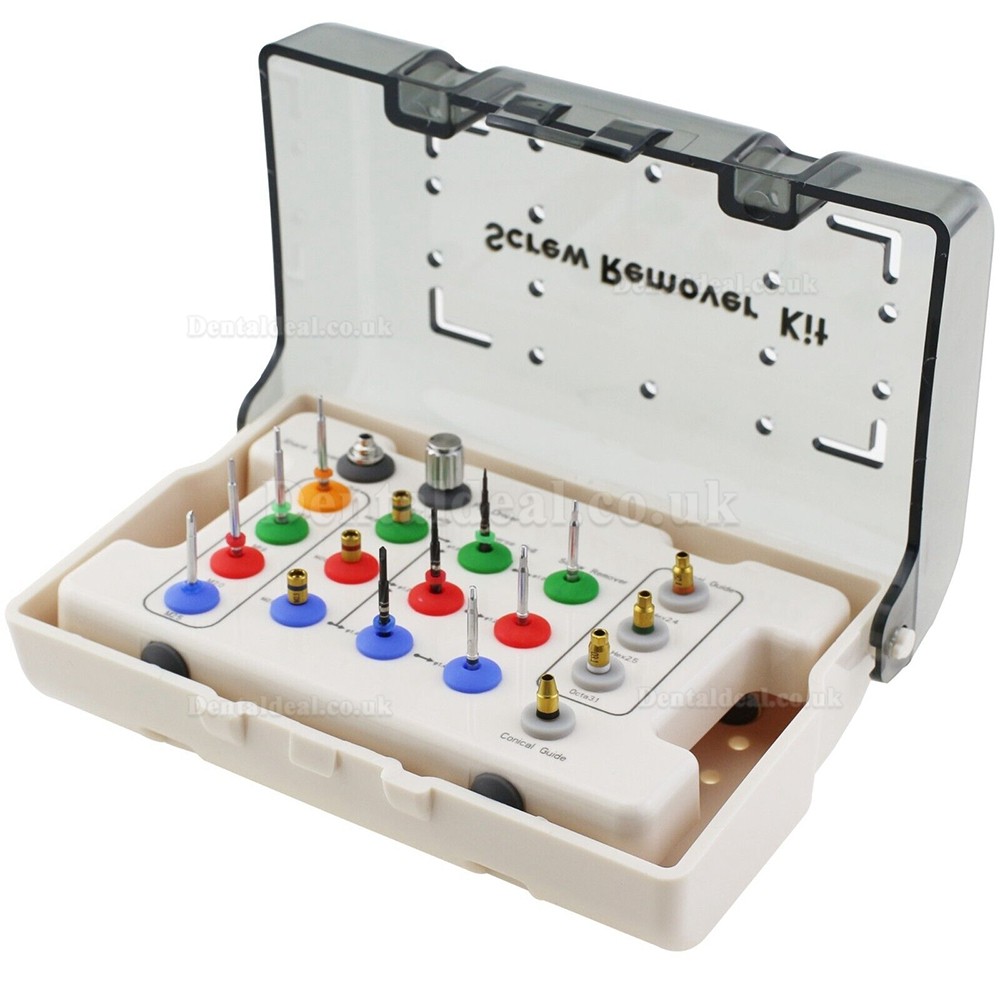

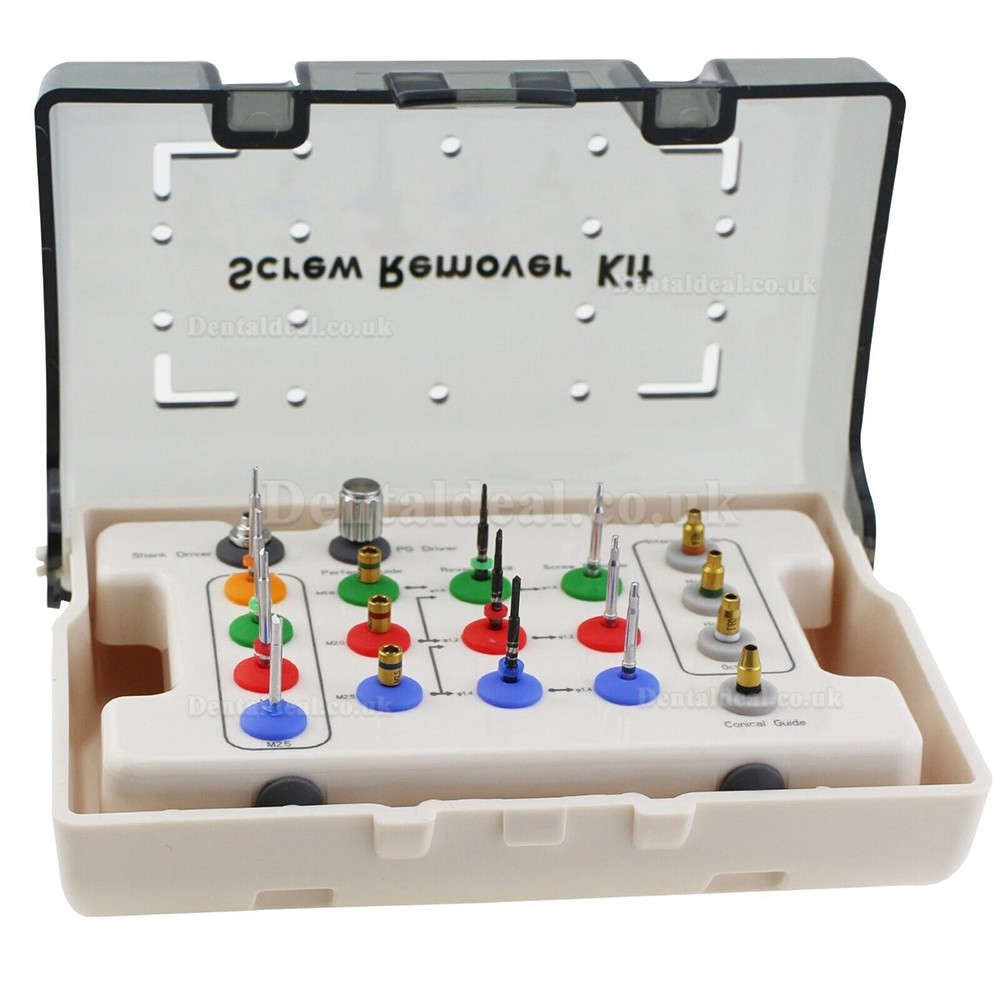

Kit Components
Claw – Surgical tool for removing a fractured screw inside the fixture. Select correct size, connect to fixture guide (conical/internal/external), attach to shank driver, rotate counter‑clockwise by hand. If claw fails, use reverse drill and screw remover.
| Product Name | Fractured Screw size | Product Name | Fractured Screw size |
| CD16 | M1.6 | CD20 | M2.0 |
| CD18 | M1.8 | CD25 | M2.5 |

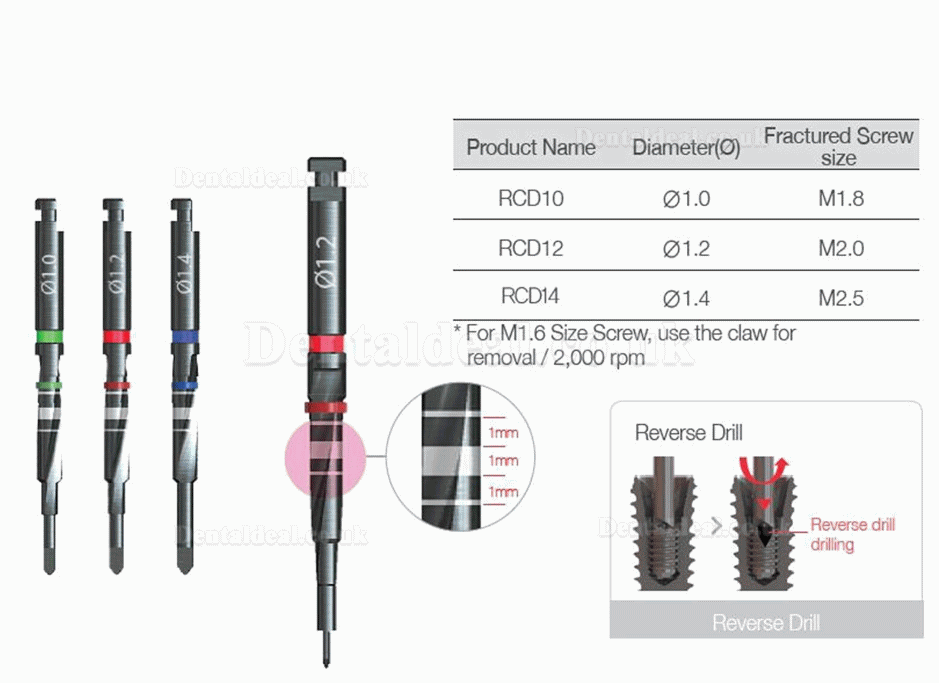

2. Reverse Drill
Reverse Drill – Creates hole in fractured screw face for screw remover. Select drill size; use with fixture guide. Drill has depth markings (1 mm – 3 mm adjustment).
Common abutment screw sizes: M1.6, M1.8, M2.0, M2.5 (M = metric, number = outer diameter in mm). M1.6 screws should use Claw.
| Product Name | Diameter(Ø) | Fractured Screw size |
| RCD10 | Ø 1.0 | M1.8 |
| RCD12 | Ø 1.2 | M1.8 |
| RCD14 | Ø 1.4 | M1.8 |

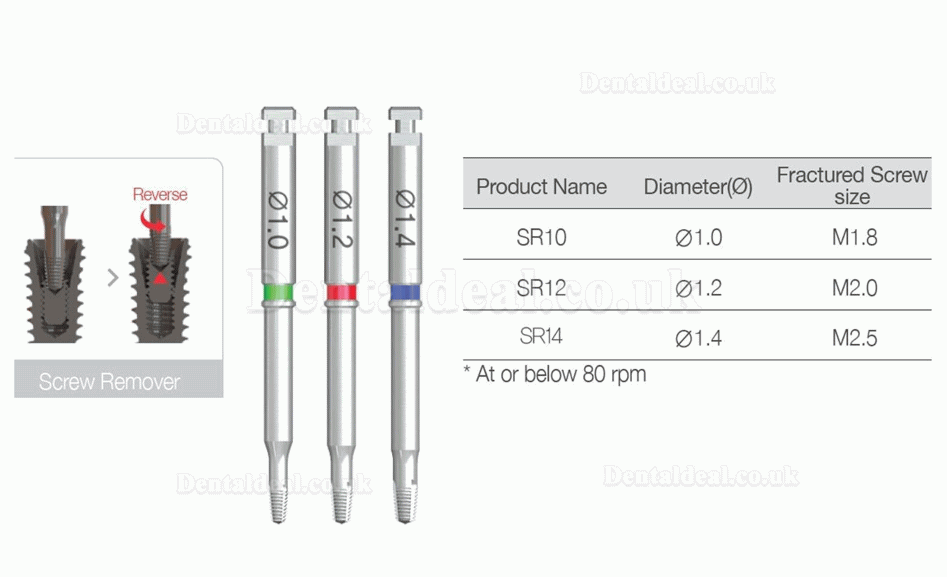

3. Screw Remover
Screw Remover – Tapered device. Insert correct size into hole made by reverse drill, rotate counter‑clockwise at low speed (≤ 80 rpm).
| Product Name | Diameter (Ø) | Fractured Screw size |
| SR10 | Ø 1.0 | M1.8 |
| SR12 | Ø 1.2 | M2.0 |
| SR14 | Ø 1.4 | M2.5 |
4. Shank Driver
| Product Name | Standard | Applicable Products |
| SHD00 | for Hand or Ratchet |
Screw Remover (SR10, SR12, SR14) |
Guide & PG Hand Driver – Guide for reverse drill when screw is fractured deep inside fixture.

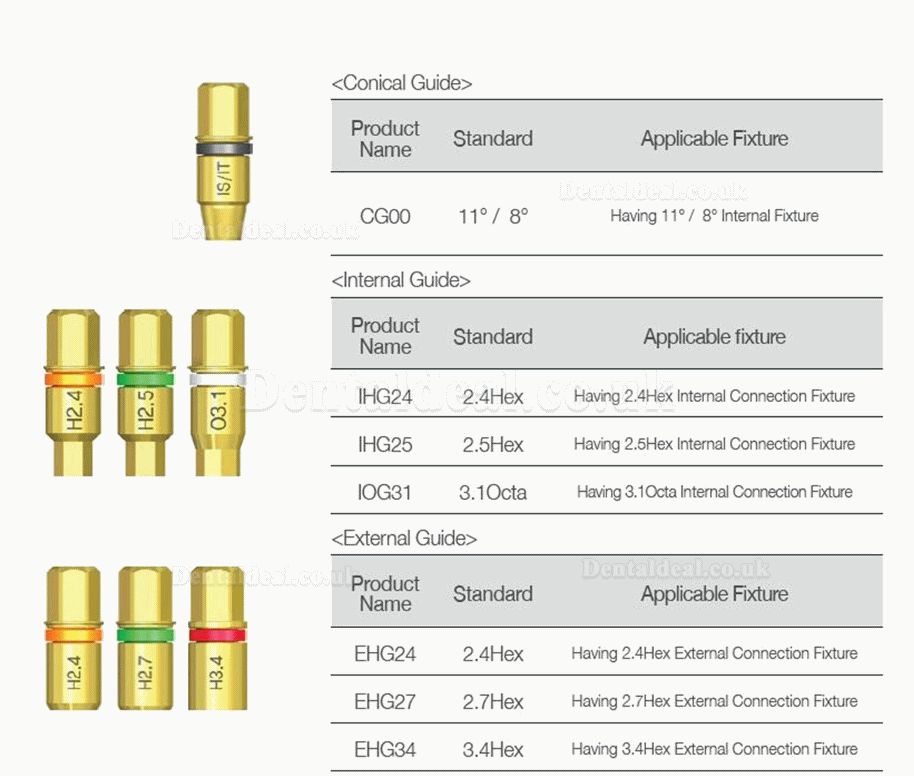

Conical, Internal, External Guides – Used with reverse drill when standard guide cannot be used or fracture is deeper than 2 mm.
SR Driver Holder – Attaches to fixture via 3.5 mm double hex part of conical/internal/external guides.
