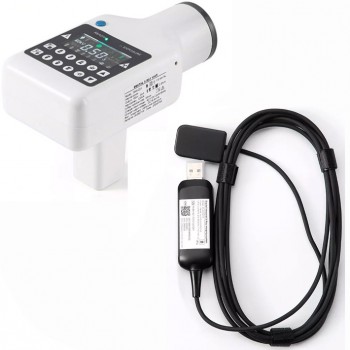

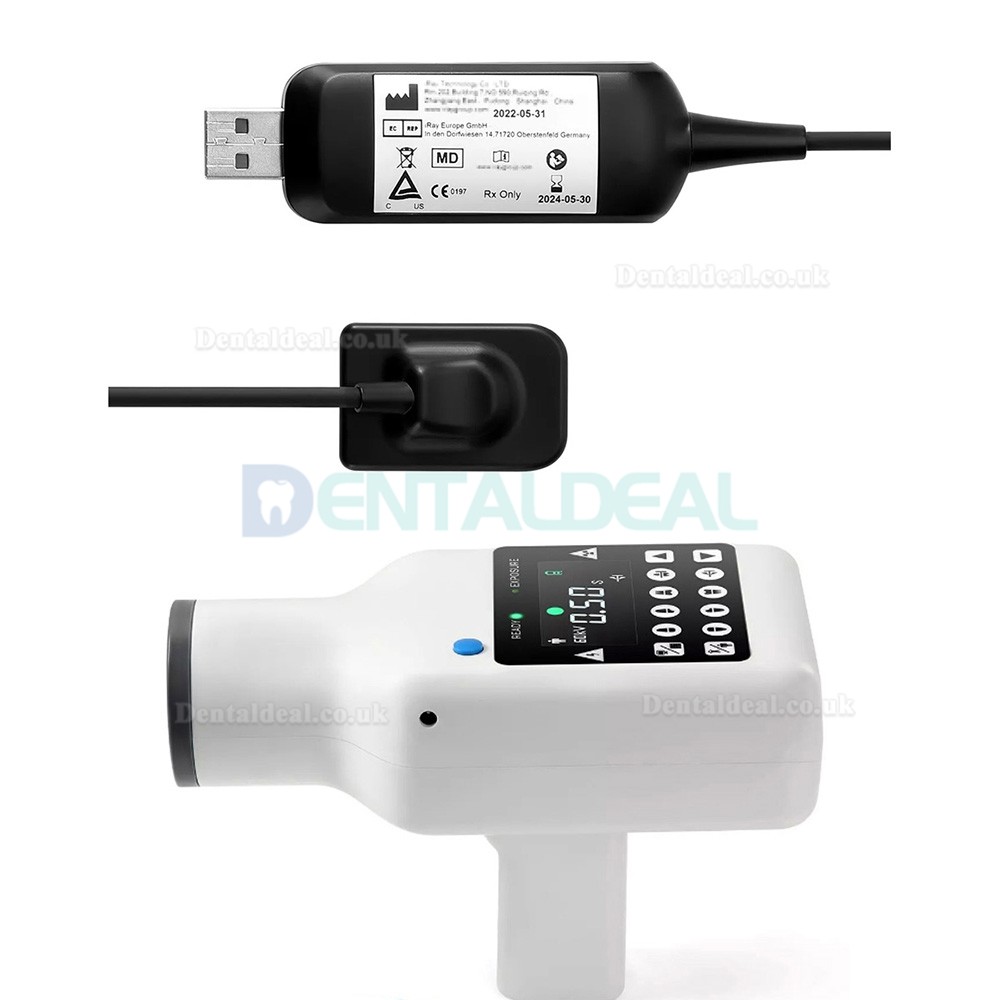

Portable High-Frequency Handheld Dental X-Ray Unit with RVG Intraoral Sensor Kit

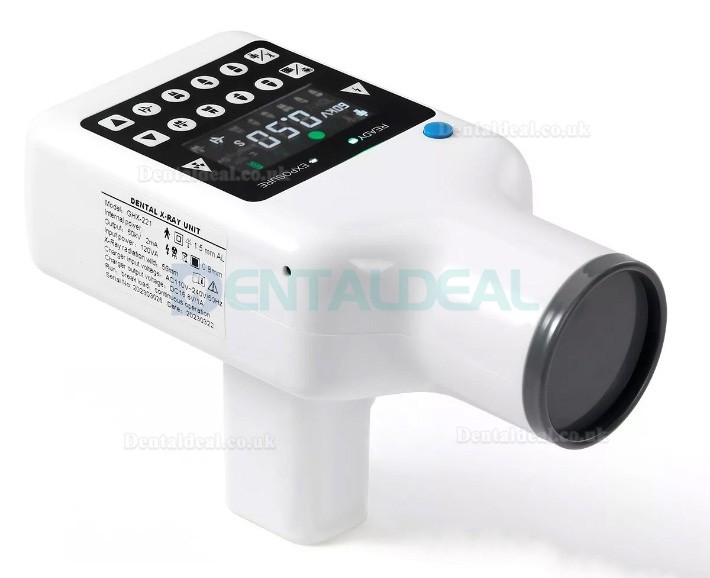

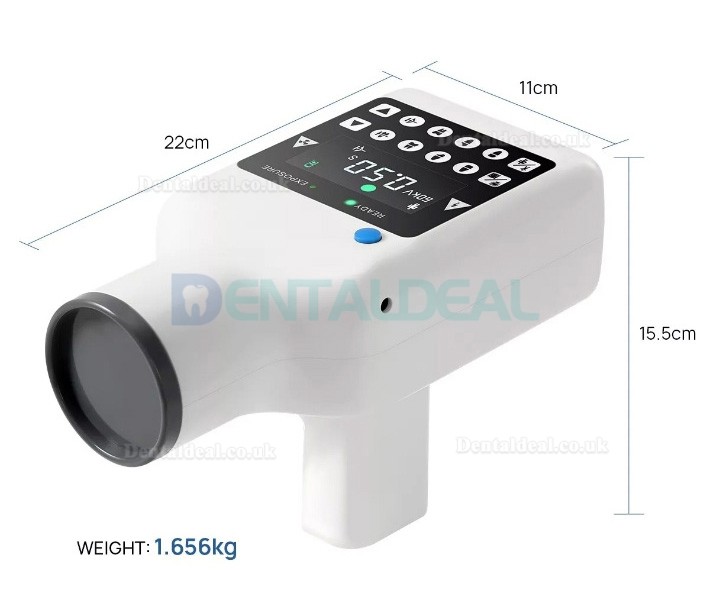

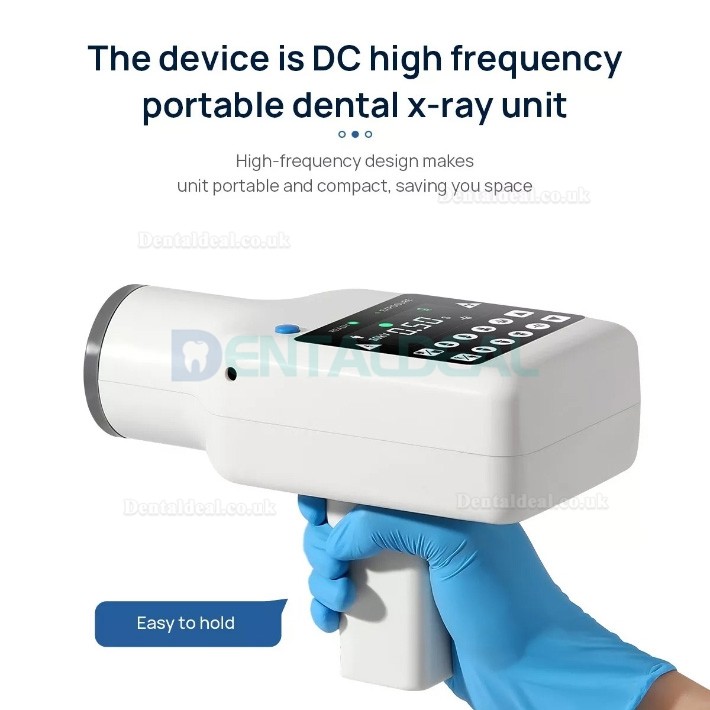

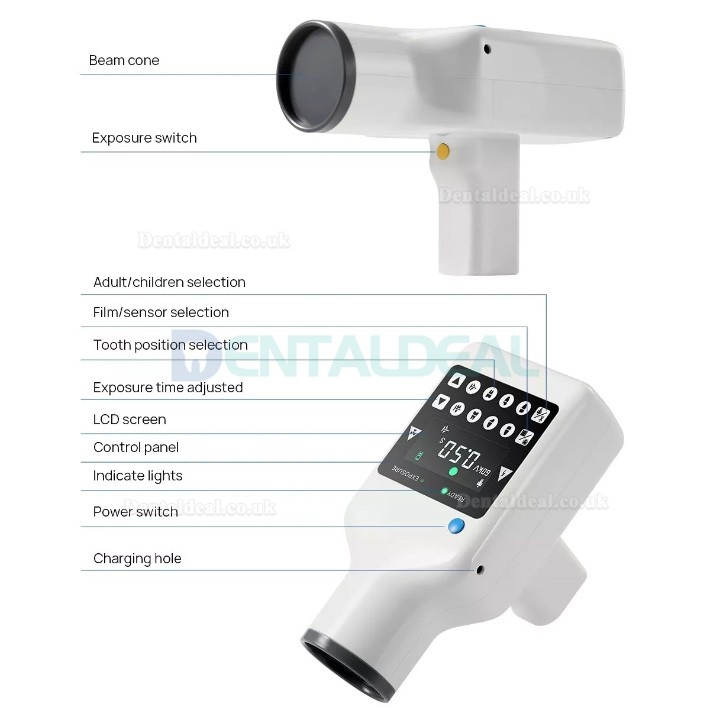

High Frequency Digital Portable Handheld Dental X-ray Machine RAY-221
Features:
Compact and lightweight design;
High-frequency operation with radiation leakage <20μGy/h;
Utilizes high-frequency DC power supply;
All components are centrally installed with shock-resistant, insulated vacuum-sealed protection;
Preset exposure times for both adults and children;
Battery capable of capturing approximately 400 images on a full charge.
| Specification | Details |
| Tube Voltage | 60KV |
| Tube Current | 2mA |
| Exposure Time | 0.1-2.0S |
| Frequency | 30kHz |
| Rate Power | 120VA |
| Distance from Skin to Cone | 105mm |
| Tube Focus | 0.8mm x 0.8mm |
| Battery | DC14.8V 1600mAh |
| Charger Input Voltage | AC100V-240V+10% |
| Output Voltage | DC16.8V |
| Ambient Temperature | 5℃~40℃ |
| Relative Humidity | <75%RH |

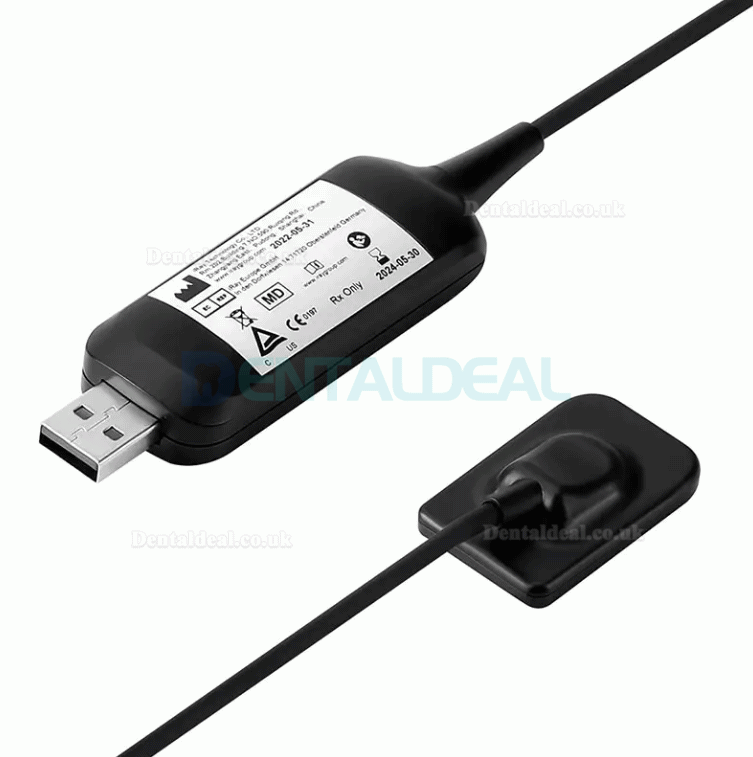

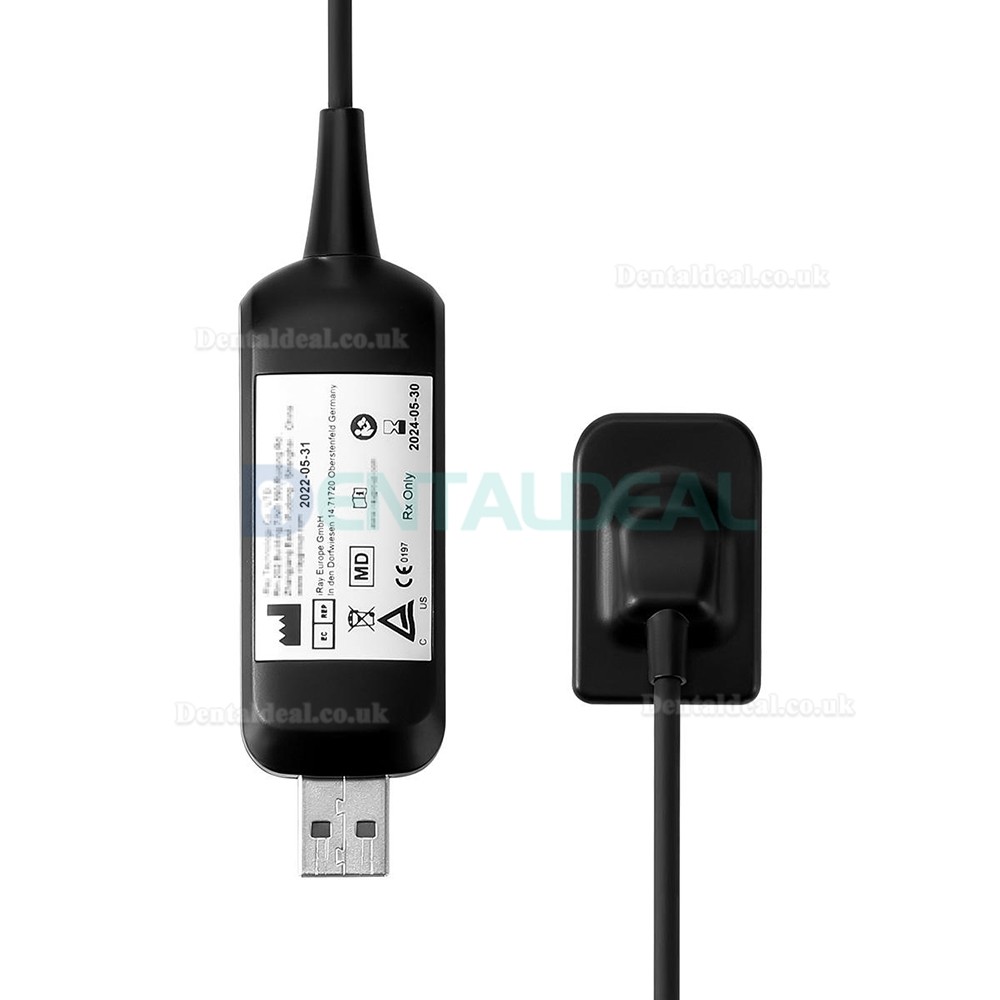

Dental Digital X-Ray Sensor RVG Intraoral Sensor System HD Image With Software S1/S2
Features:
Installation options: 'Single-User' for one device; 'Host' for primary device and 'Extension' for additional devices in multi-machine setups.

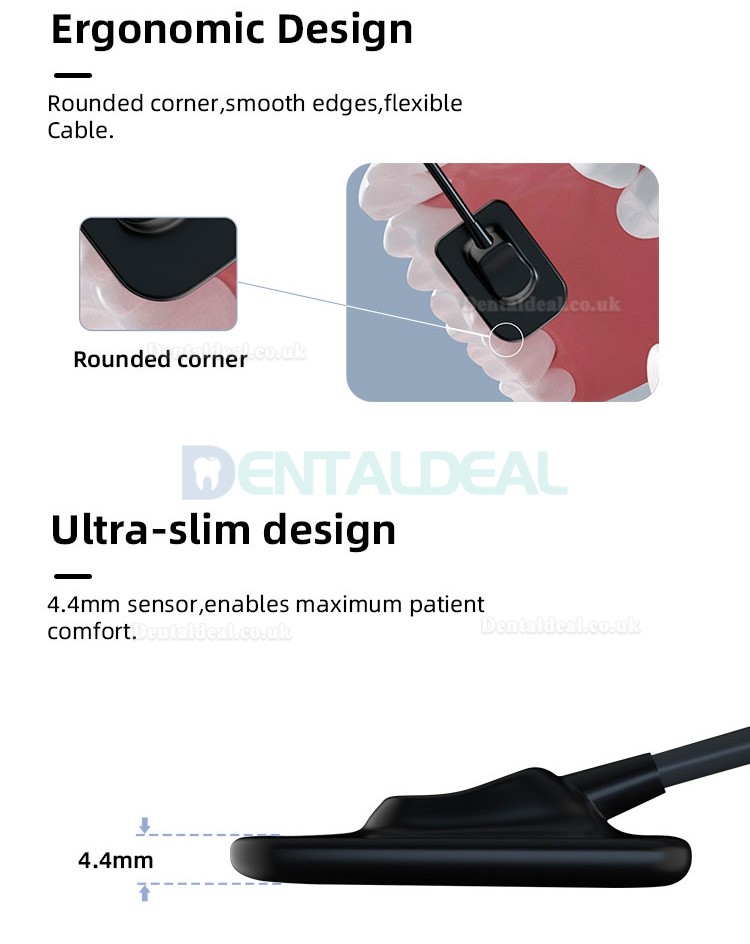

Available in two sizes with rounded corners and a thickness of 4.4mm.

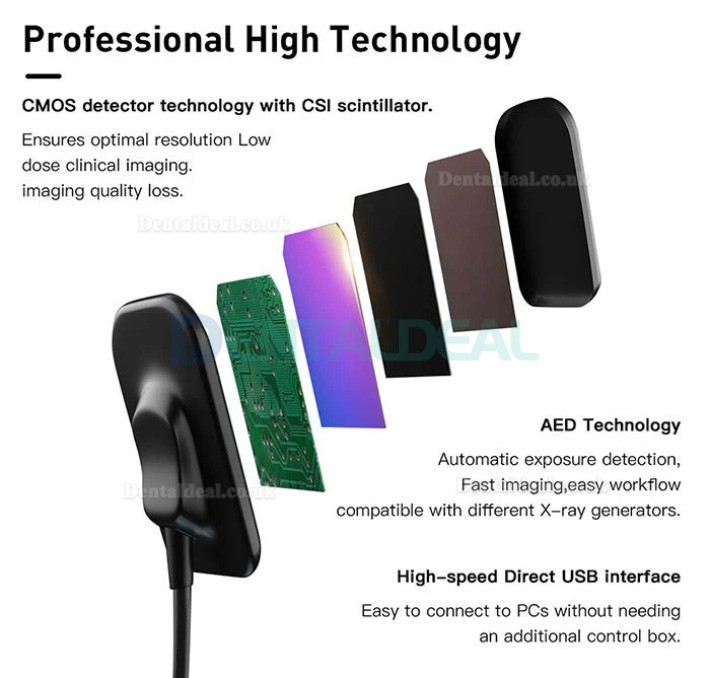

CMOS detector technology with CSI scintillator.
Compatible with standard x-ray generators.

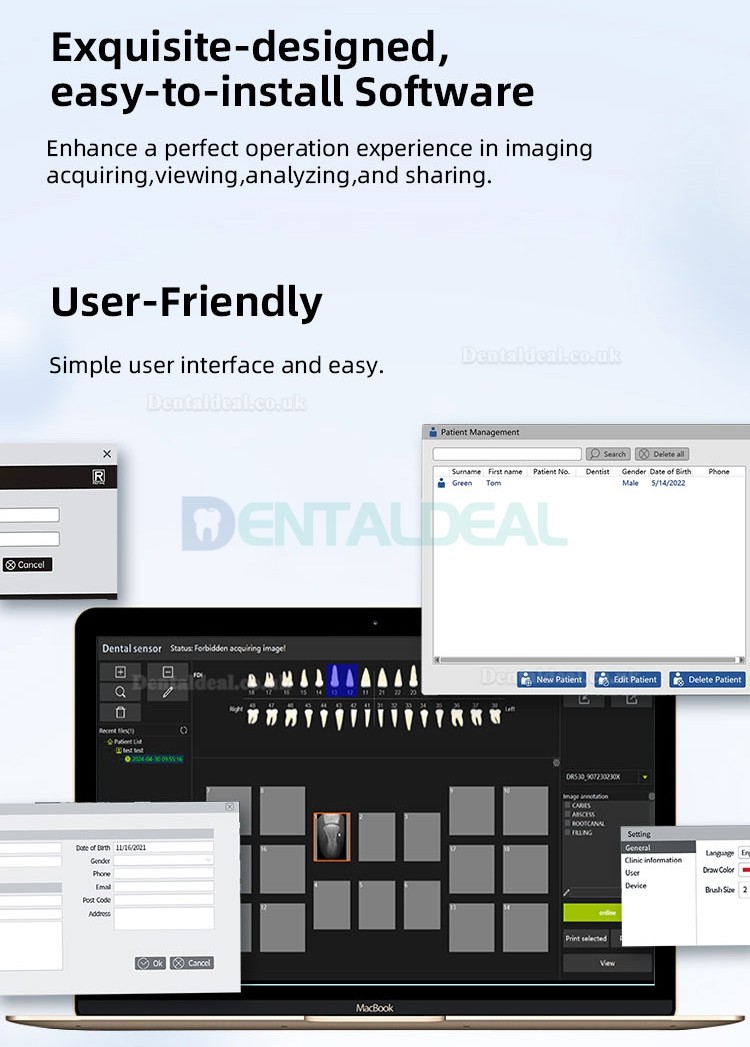

Hardware and Software Requirements:
Processor: 1.0GHz or above
Memory: 2GB or above
Hard Disk: 64GB or above
Display Resolution: 1440*900 or above
USB Port: USB2.0
Operating System: Windows 7, Windows 10, Windows 11;

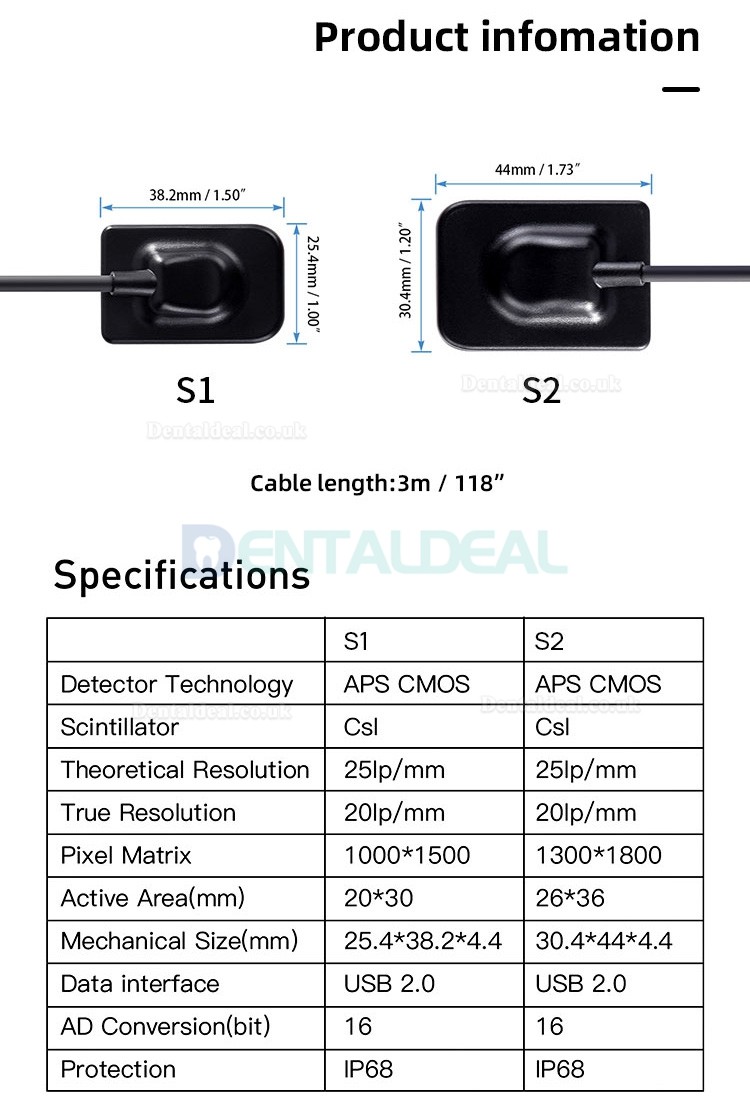

Technical parameter:
| S1 | S2 | |
| Detector Technology | APS CMOS | APS CMOS |
| Scintillator | CsI | CsI |
| Theoretical Resolution | 25lp/mm | 25lp/mm |
| True Resolution | 20lp/mm | 20lp/mm |
| Pixel Matrix | 1000*1500 | 1300*1800 |
| Active Area(mm) | 20*30 | 26*36 |

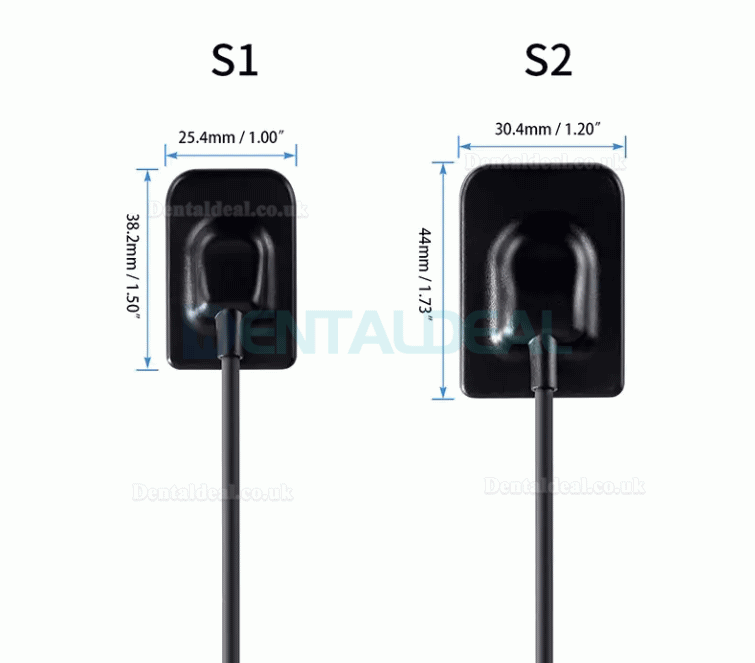

| Mechanical Size(mm) | 25.4*38.2*4.4 | 30.4*44*4.4 |
| Data interface | USB 2.0 | USB 2.0 |
| AD Conversion(bit) | 16 | 16 |
| Protection | IP68 | IP68 |

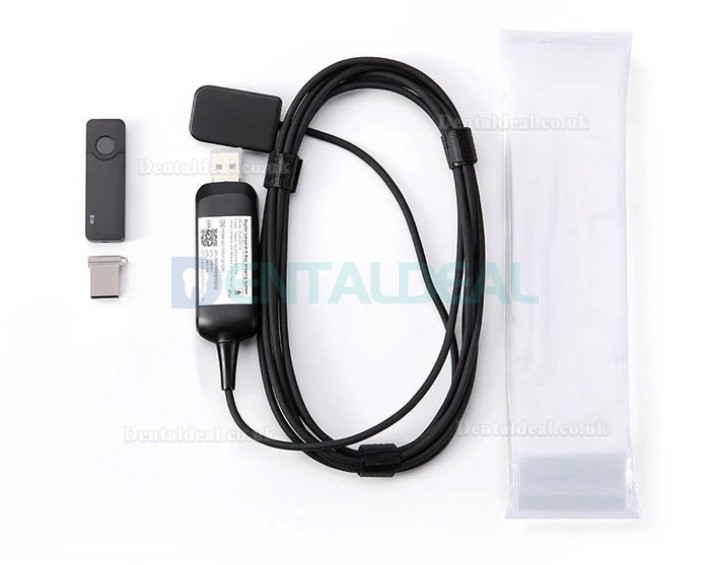

Packing list:
1. Sensor
2. USB flash disk (Software)
3. Protective sleeve;
