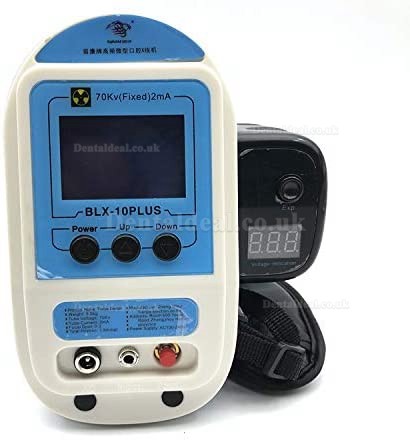

BLX-10 Plus Portable X Ray Unit Handheld Dental X Ray Camera

Features

Portable high-frequency dental X-ray unit

Microprocessor-controlled exposure

Adjustable exposure time: 0.1–1.8 s

Control options: main unit, tube head or remote control

Compatible with 30 × 40 mm dental film

Battery powered: DC 16.8 V

Charger input: AC 100–240 V

Technical Specifications:

Tube Voltage: 70 kV, fixed

Tube Current: 2 mA, fixed

High-Voltage Circuit: High-frequency switch

X-ray Control: Microprocessor control

Exposure Time: 0.1–1.8 s

Weight: 2.5 kg

Size: 215 × 140 × 160 mm

X-ray Tube:

Type: Bipolar fixed X-ray tube

Tube Model: DG-073B-DC

Focal Spot: 0.3 × 0.3 mm

Anode Heat Capacity: 8.5 kHU

Maximum Tube Voltage: 75 kV

Target Angle: 21°

Total Filtration: 1.6 mm Al

 Filtration: 0.8 mm Al

Additional Filtration: 1.0 mm Al

Irradiation Range: 73 mm round field
