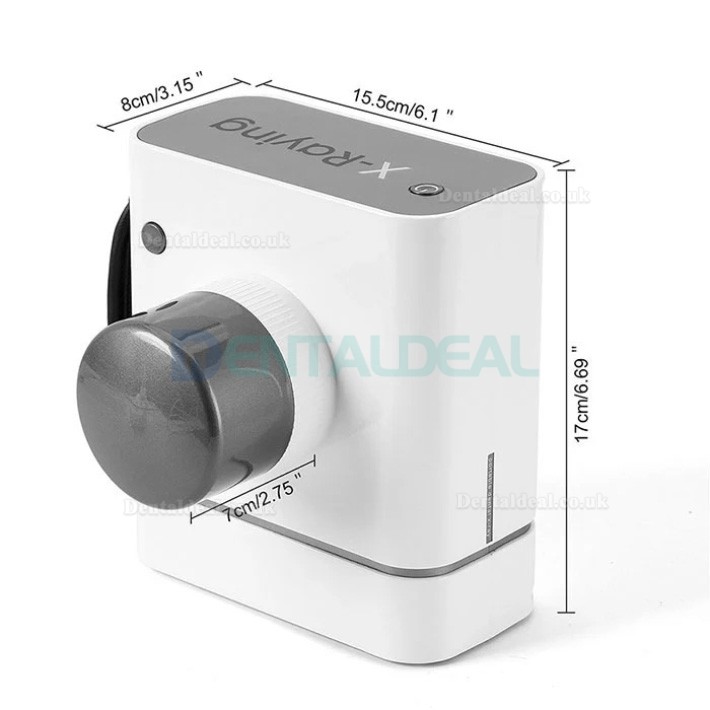

RAY-200 Portable High-Frequency Handheld Dental X-Ray Device Intraoral Imaging System

High Frequency Handheld Portable Dental X Ray Machine Digital Intraoral Imaging System RAY-200

Features

High frequency unit.

Radiation leakage: <20 μGy/h.

Portable storage.

High frequency DC power supply.

Insulated vacuum-sealed protection.

Preset exposure times: adult and child.

Battery: approximately 400 images per full charge.

Specifications

Radiation leakage: <20 μGy/h

Battery life: Approximately 400 images per charge

Power supply: High frequency DC, international compatible

Exposure times: Preset for adult and child

Protection: Insulated vacuum-sealed

Technical Parameter:

Tube Voltage:60KV

Tube Current:2mA

Exposure Time:0.1~2.0s

Frequency:30KHz

Rate Power:120VA

Distance From Skin To Cone:118mm

Tube Focus:0.4mm×0.4mm

Battery:DC14.8V 2200mAh

Charger Input Voltage:AC100V-240V±10%

Output Voltage:DC16.8V

Ambient Temperature:5℃~40℃

Relative Temperature:<75%RH

Packing List

Main Body:1Pc

Charger:1Pc

User Manual:1Pc;
