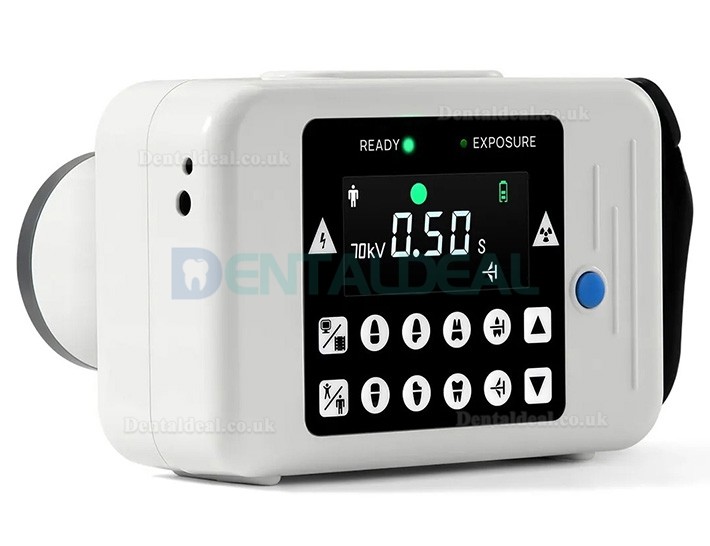

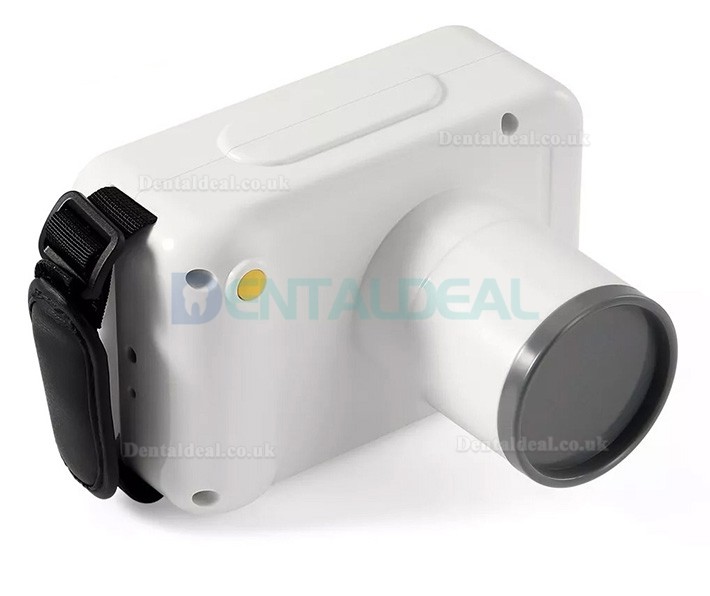

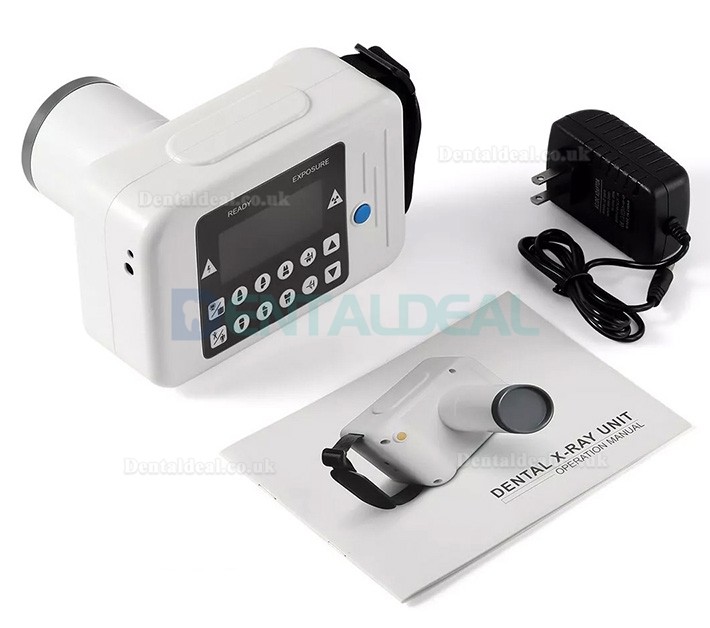

RAY-121 Digital Portable Handheld Dental X-Ray Imaging Unit
Dental Digital Portable Handheld Dental X-ray Imaging Unit System RAY-121
Features
Compact and lightweight.
High-frequency operation with radiation leakage <20 μGy/h.
Uses DC power supply.
Central PC board with insulated, vacuum-sealed components.
Preset exposure times for adults and children.
Battery capacity: About 400 exposures per full charge.
| Specification | Details |
| Tube Voltage | 60KV |
| Tube Current | 2mA |
| Exposure Time | 0.1-2.0S |
| Frequency | 30kHz |
| Rate Power | 120VA |
| Distance from Skin to Cone | 105mm |
| Tube Focus | 0.8mm x 0.8mm |
| Battery | DC14.8V 1600mAh |
| Charger Input Voltage | AC100V-240V+10% |
| Output Voltage | DC16.8V |
| Ambient Temperature | 5℃~40℃ |
| Relative Humidity | <75%RH |
